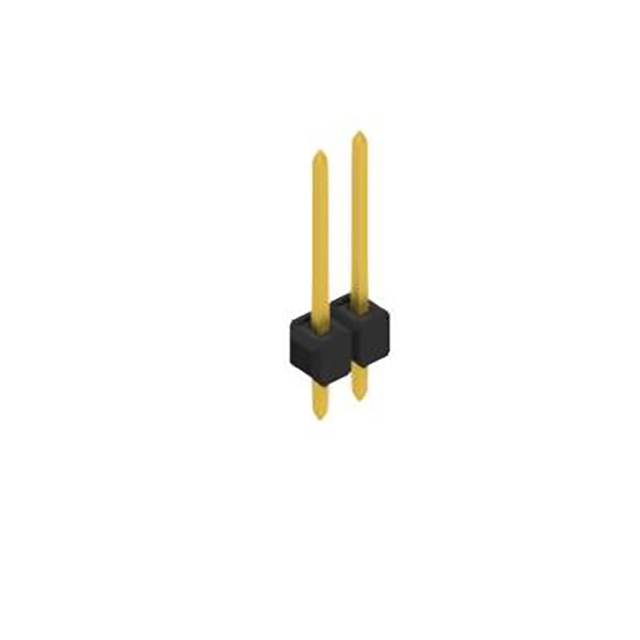

SL 11 164 2 G

$0.16

Description：ONE ROW, 0.635 MM
Series：SL 11 164
Mfr：Fischer Elektronik
Package：Bulk

SKU:5f688c4cc5af Category: Headers, Male Pins Brand: Fischer Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SL 11 164 2 G is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Fischer Elektronik. Its product description is ONE ROW, 0.635 MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for SL 11 164 2 G

Description：ONE ROW, 0.635 MM
Series：SL 11 164
Mfr：Fischer Elektronik
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：2
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.417" (10.59mm)
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：0.646" (16.40mm)
Insulation Height：0.110" (2.80mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：7.87µin (0.200µm)
Contact Finish - Post：Gold
Contact Material：Copper Tin
Insulation Material：Polyamide (PA46), Nylon 4/6, Glass Filled
Features：-
Operating Temperature：-40°C ~ 163°C
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for SL 11 164 2 G

SL 11 164 2 G

Headers, Male Pins Overview

The SL 11 164 2 G is a single-row male pin header manufactured by Fischer Elektronik. It features a 0.100 inch (2.54 mm) pitch and contains two positions. The connector utilizes through-hole termination for PCB mounting. Contact materials consist of copper alloy with tin plating to ensure reliable electrical conductivity. The design supports standard insertion depths into printed circuit boards.

Headers, Male Pins Feature Summary

Single-row male pin configuration
Through-hole soldering termination
Tin-plated copper alloy contacts

Headers, Male Pins Applications

General-purpose PCB interconnections
Prototype board assembly
Low-density signal routing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact contact length and plating thickness specifications. Ensure the selected variant matches the required insertion depth for the target PCB stack-up. Cross-reference the part number with official Fischer Elektronik documentation to avoid confusion with similar series components that may have different mechanical dimensions or material compositions.

Headers, Male Pins Selection Notes

Select this component when a minimal two-position male header is required for low-current applications. Consider the through-hole mounting style for robust mechanical stability during assembly. Evaluate the tin plating suitability for the intended mating environment and cycle life requirements. Confirm that the single-row layout fits within the available board space constraints without interfering with adjacent components.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of PCB connectors from Fischer Elektronik. The series offers various pole counts and row configurations for diverse electronic assembly needs. These headers are designed for standard industrial and commercial electronics manufacturing processes, providing reliable connectivity solutions for board-to-board or cable-to-board interfaces.
