SL 11 164 2 S

Headers, Male Pins Overview

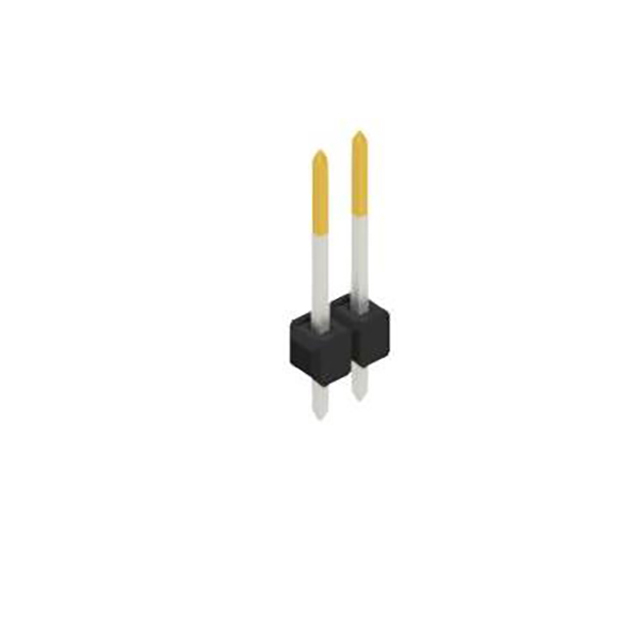

The SL 11 164 2 S is a one-row male pin header manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) pitch with 2 contacts. The connector utilizes square-shaped pins made of copper-tin alloy, finished with gold plating on the mating surface and nickel-tin on the column. Key dimensions include an overall contact length of 0.646 inches (16.40 mm), an insulation height of 0.110 inches (2.80 mm), and a PCB insertion depth of 3.00 mm. It is designed for through-hole mounting.

Headers, Male Pins Feature Summary

• Gold-plated mating contacts ensure reliable signal transmission and corrosion resistance.
• Square pin shape provides secure mechanical retention within the socket.
• Polyamide insulation material offers thermal stability up to 163°C.

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic equipment headers

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates gold plating on the mating surface as per official datasheets. Confirm the pole count matches the required circuit design. Ensure the through-hole straight configuration aligns with the PCB layout requirements before ordering.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row header with gold-plated contacts is required. The 2.54 mm pitch ensures compatibility with standard breadboards and sockets. Consider the 16.40 mm total length for adequate insertion depth into mating connectors.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered pin headers from Fischer Elektronik. The series is characterized by compact designs suitable for dense PCB layouts. Variants in this series differ primarily in pole count and contact surface finish options.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, 2-position count, and gold-plated contact finish. Verify that alternative manufacturers offer compatible square pin shapes and similar insulation heights to ensure proper mating.

Headers, Male Pins FAQ

What is the contact material for the SL 11 164 2 S?

The contacts are made of copper-tin alloy.

Does this connector support soldering at reflow temperatures?

Yes, it withstands soldering conditions of 260°C for 10 seconds.
