SL 11 164 2 Z

Headers, Male Pins Overview

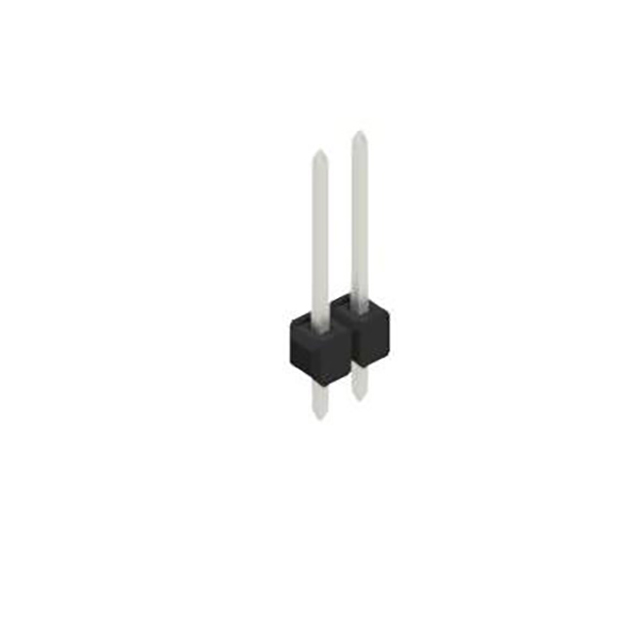

The SL 11 164 2 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.100 inch (2.54 mm) pitch and contains two positions. The connector utilizes square-shaped pins with a tin plating finish on both the mating and column contacts. The contact length for mating is specified at 0.213 inches (5.40 mm), while the column contact length is 0.118 inches (3.00 mm). The total contact length measures 0.441 inches (11.20 mm). Insulation height is 0.110 inches (2.80 mm), constructed from polyamide (PA46). The tin plating thickness is 157.5 µin (4.00 µm).

Headers, Male Pins Feature Summary

• Through-hole mounting design for PCB integration.
• Single-row configuration with square pin geometry.
• Tin-plated copper alloy contacts for conductivity.

Headers, Male Pins Applications

• General purpose PCB interconnections.
• Signal routing in electronic assemblies.
• Prototype development circuits.

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to ensure compatibility with required current ratings and voltage specifications. Confirm that the tin plating thickness meets the corrosion resistance requirements for the intended operating environment. Cross-reference the insulation material properties with thermal management needs of the application.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for direct PCB insertion. Ensure the mating device accommodates the 0.100 inch pitch and square pin shape. Evaluate the mechanical stability provided by the through-hole termination method against surface-mount alternatives for vibration resistance.

Headers, Male Pins Part Context

This model belongs to the SL 11 series of male pin headers from Fischer Elektronik. The series offers various position counts and row configurations. This specific variant provides a minimal two-position interface option within the standard 2.54 mm spacing family, suitable for compact circuit designs requiring limited connection points.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik catalogs for alternative part numbers within the SL 11 series that match the required position count and pitch. Verify that any substitute maintains the same square pin profile and tin plating specifications to ensure mechanical and electrical compatibility with existing mating connectors.
