SL 11 164 20 G

Headers, Male Pins Overview

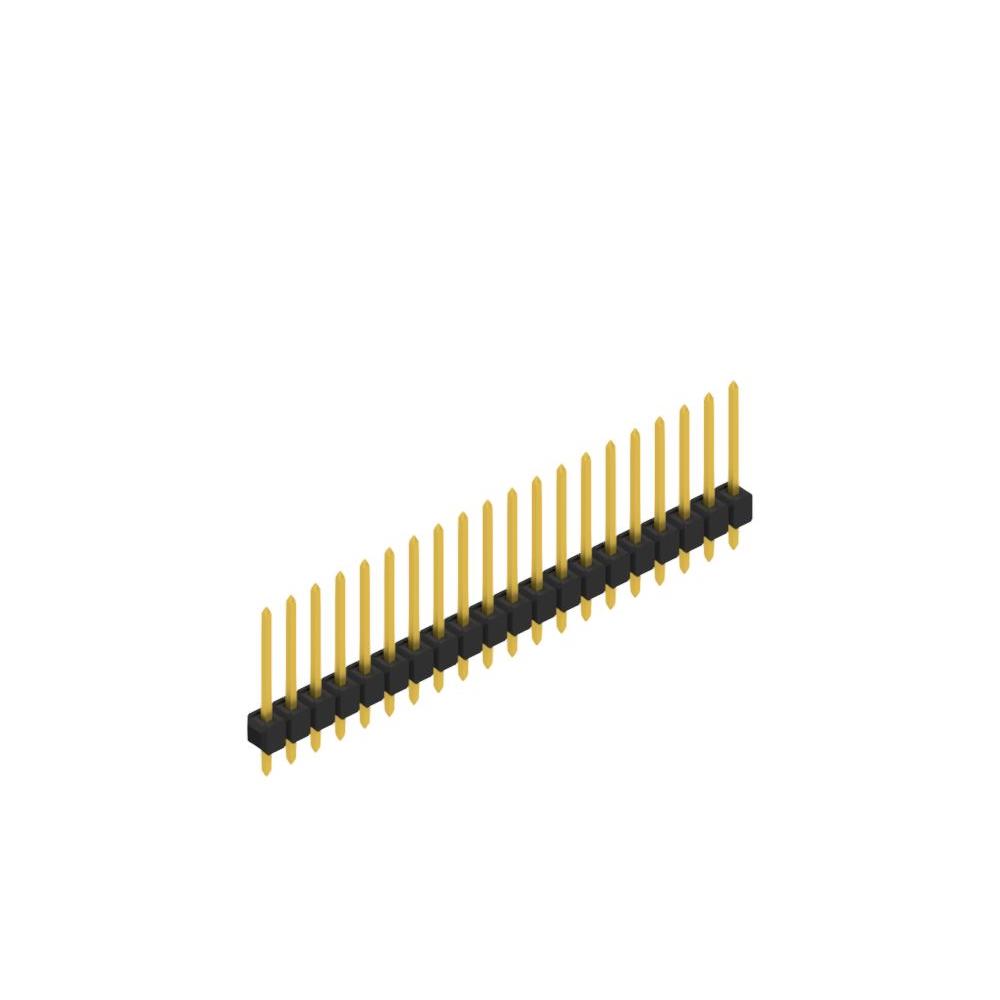

The SL 11 164 20 G is a male header connector from Fischer Elektronik, designed for through-hole PCB mounting. It features a single row with 20 positions and a standard 2.54 mm (0.100 inch) pitch. The contacts are square-shaped pins made of copper-tin alloy, finished with tin plating to ensure reliable electrical connections. This component belongs to the SL 11 series, which offers various contact counts ranging from 1 to 36.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for straightforward PCB integration
• Square contact cross-section providing mechanical stability
• Tin-plated copper-tin contacts for corrosion resistance

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• PCB-to-PCB communication links
• Signal routing in consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm the 20-position count and single-row layout. Ensure that the through-hole mounting style matches the target PCB design requirements. Cross-reference the tin plating specifications if environmental durability is critical for the application environment.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 2.54 mm pitch is required. Consider the total contact length and insertion depth relative to the board thickness. Evaluate the need for additional locking mechanisms or secondary retention features if vibration resistance is necessary beyond the standard through-hole solder joint.

Headers, Male Pins Part Context

This connector is part of the SL 11 series, which provides a range of male headers with grid spacings of 2.54 mm. The series supports configurations from one to thirty-six contacts in a single row. These connectors are widely used in industrial and commercial applications requiring robust and standardized interconnect solutions.

Headers, Male Pins Replacement Considerations

Compatible substitutes within the same series include SL 11 164 11 G and SL 11 164 21 G, differing only in the number of positions. Ensure that any replacement maintains the same 2.54 mm pitch and single-row format to preserve mechanical compatibility.
