SL 11 164 20 Z

Headers, Male Pins Overview

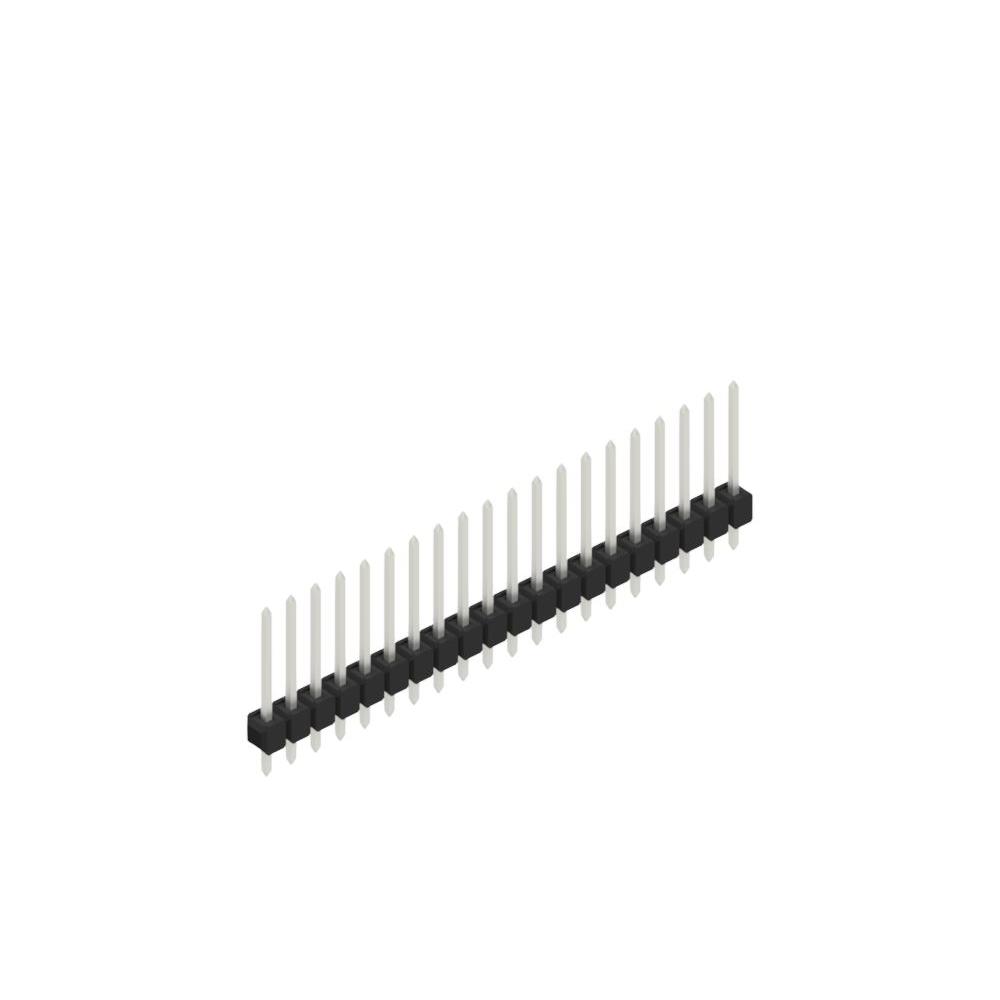

The SL 11 164 20 Z is a single-row male pin header manufactured by Fischer Elektronik. It features 20 positions with a 2.54 mm (0.100 inch) pitch. The connector utilizes through-hole mounting and has square contact pins made of copper-tin alloy with tin plating. Key dimensions include an insertion depth of 3.00 mm, a total contact length of 11.20 mm, and an insulation height of 2.80 mm. The housing is constructed from glass-filled polyamide (PA46).

Headers, Male Pins Feature Summary

• Single-row design for compact circuit board integration.
• Through-hole termination method for secure PCB attachment.
• Tin-plated copper-tin contacts for reliable conductivity.

Headers, Male Pins Applications

• General electronic interconnects
• Printed circuit board assembly
• Signal transmission modules

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm compatibility. Ensure that the required pin count and pitch match the design specifications. Check for any specific environmental ratings or temperature limits defined in the datasheet before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 2.54 mm spacing is required. Consider the through-hole mounting style and the specific insulation material properties. Verify that the contact finish and current carrying capacity meet the application requirements compared to alternative series within the manufacturer's portfolio.

Headers, Male Pins Part Context

This component belongs to the SL 11 164 series of pin headers. The series offers various pole counts while maintaining consistent mechanical and electrical characteristics. It is designed for standard electronic applications requiring robust connectivity between boards or components.

Headers, Male Pins Replacement Considerations

Compatible substitutes may include other Fischer Elektronik SL 11 series headers with identical pitch and row configuration. Verify that alternative parts match the 2.54 mm spacing and through-hole mounting requirements to ensure mechanical fit.
