SL 11 164 21 G

Headers, Male Pins Overview

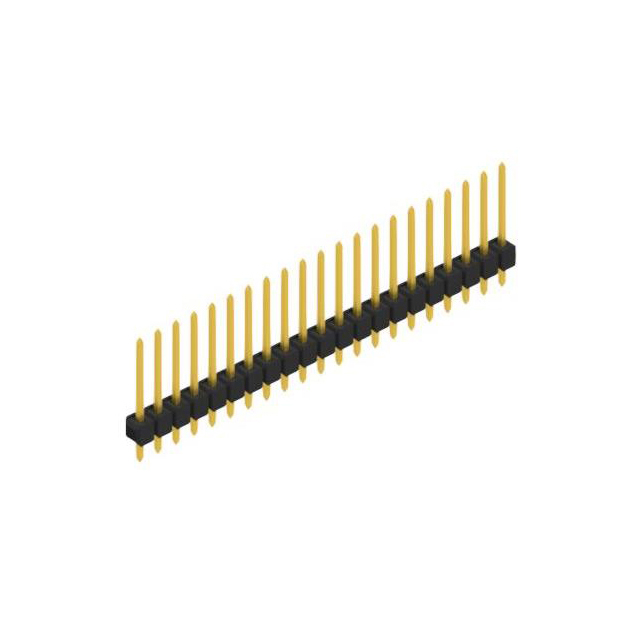

The SL 11 164 21 G is a male header connector from Fischer Elektronik, designed for through-hole PCB mounting. It features a single row with 21 positions and a 0.100 inch (2.54 mm) pitch. The contacts are gold-plated nickel with a minimum thickness of 0.2 micrometers. Rated for operation between -40°C and +163°C, it withstands reflow soldering at 260°C for 10 seconds. Dimensions include a length of 16.4 mm, width of 3 mm, and height of 10.6 mm.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for direct PCB insertion
• Gold-plated nickel contact surface for corrosion resistance
• Thermal stability up to 163°C continuous operation
• Precision-engineered housing for secure mechanical retention

Headers, Male Pins Applications

• Industrial control panel interconnections
• Consumer electronics board-to-board linking
• Automotive sensor module connections
• Telecommunications equipment assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' confirms the gold plating specification as documented in the official datasheet. Ensure the part number matches the 21-position variant exactly. Confirm RoHS compliance status if required by your manufacturing standards. Cross-reference the thermal rating with your assembly process capabilities. Request sample units to validate physical fit before bulk procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with gold-plated contacts is required. The 2.54 mm pitch suits standard PCB layouts. Consider the 163°C temperature rating for high-heat environments. Verify that the 21-pin count meets circuit requirements. Evaluate the through-hole mounting style against available board space and mechanical constraints.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male headers from Fischer Elektronik. The series offers various pin counts and contact plating options. The SL 11 164 designation indicates a specific housing size optimized for 16.4 mm length applications. This model provides a reliable connection solution for dense electronic assemblies requiring durable conductive paths.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 21-position count, 2.54 mm pitch, and gold-plated nickel contact specifications. Verify dimensional compatibility with existing PCB footprints. Ensure thermal ratings meet or exceed original design requirements.
