SL 11 164 24 G

Headers, Male Pins Overview

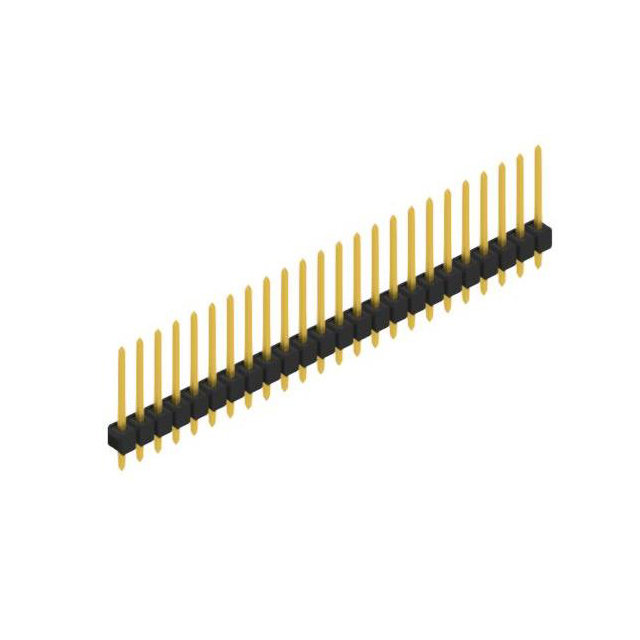

The SL 11 164 24 G is a male pin header connector from Fischer Elektronik, designed for through-hole mounting on printed circuit boards. It features a single row with 24 positions and a standard 2.54 mm (0.100 inch) pitch. The contacts are made of copper alloy with tin plating to ensure reliable electrical conductivity and corrosion resistance. The insulating housing is constructed from polyamide (PA46), providing mechanical stability and thermal endurance suitable for standard reflow soldering processes.

Headers, Male Pins Feature Summary

• Single-row male pin header configuration for direct PCB insertion
• Tin-plated copper alloy contacts for secure signal transmission
• Polyamide insulation housing rated for high-temperature processing

Headers, Male Pins Applications

• General-purpose electronic equipment interconnects
• Industrial control panel wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' against the manufacturer's current datasheet to confirm exact plating thickness and material specifications. Ensure the required contact count matches the 24-position design. Cross-reference the package style to confirm through-hole compatibility rather than surface-mount variants within the same series.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for board-to-board or cable connections. Consider the operating temperature range and current rating limits defined in the official specification sheet. Verify that the housing height and insertion depth align with the mechanical constraints of the target enclosure design.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of pin headers manufactured by Fischer Elektronik. The series offers various pole counts and configurations, including SMD options. The SL 11 164 variant specifically denotes a standard height housing design, distinguishing it from low-profile or high-current alternatives within the broader product portfolio.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with matching 24 poles and 2.54 mm pitch. Generic equivalents must match the contact geometry, plating type, and insulation material properties to ensure mechanical fit and electrical performance.
