SL 11 164 24 S

Headers, Male Pins Overview

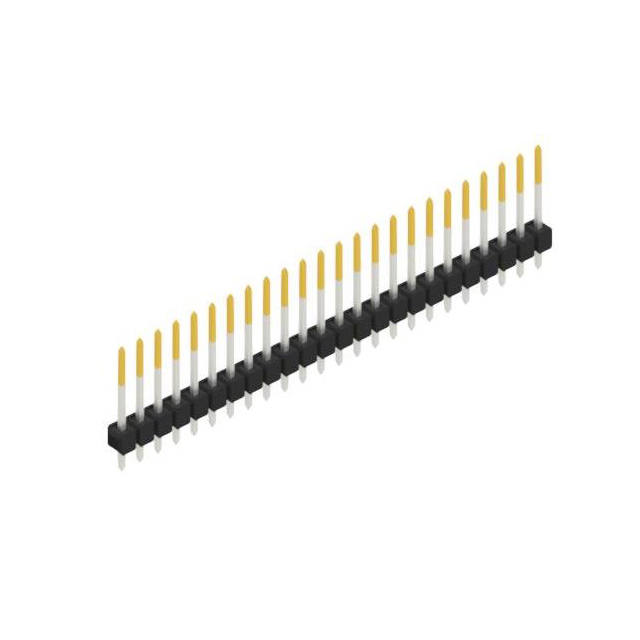

The SL 11 164 24 S is a single-row male pin header manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) pitch and contains 24 contacts. The connector utilizes gold-plated copper-tin terminals with a polyamide (PA46), glass-filled nylon insulation material. Designed for through-hole mounting, it supports an operating temperature range of -40°C to +163°C. This component serves as a board-to-board or wire-to-board interconnect solution.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for compact circuit integration
• Gold-plated contact finish ensuring reliable signal transmission
• Glass-filled polyamide insulation for enhanced thermal stability

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board connectivity modules
• General-purpose electronic assembly applications

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against official Fischer Elektronik documentation to confirm the exact contact plating specification. Ensure the selected variant matches the required 0.635 mm pitch and 24-position count for your design. Cross-reference the datasheet for precise mechanical dimensions and thermal ratings before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 0.635 mm spacing is required. Confirm that the gold-plated terminal finish meets the conductivity and corrosion resistance needs of the application. Verify compatibility with the target PCB footprint and mating connector specifications to ensure proper mechanical fit and electrical performance.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series, which specializes in precision-engineered male headers. The series offers various contact counts and pitch options to support diverse electronic connectivity requirements. These connectors are designed for robust performance in standard industrial and commercial electronic assemblies.

Headers, Male Pins Replacement Considerations

The alternative designation SL 11 164 24 Z exists within the same product family. Verify if the 'Z' suffix indicates a different contact finish or material composition compared to the 'S' variant. Consult official substitution lists to ensure functional equivalence before replacing the original part.
