SL 11 164 24 Z

Headers, Male Pins Overview

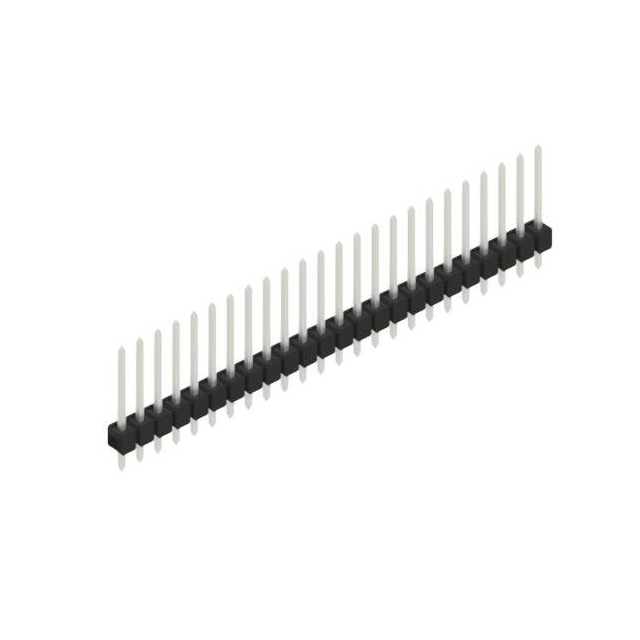

The Fischer Elektronik SL 11 164 24 Z is a single-row male header connector designed for through-hole mounting on printed circuit boards. It features 24 contacts with a standard 0.100 inch (2.54 mm) pitch, ensuring compatibility with common board layouts. The connector utilizes square-shaped pins made from copper-tin alloy, plated with tin to provide reliable electrical connections and corrosion resistance. With an overall contact length of 0.441 inches and a mating contact length of 0.213 inches, it offers robust mechanical engagement. The insulating housing is constructed from polyamide (PA46), supporting operation within standard industrial temperature ranges.

Headers, Male Pins Feature Summary

• Single-row male pin header configuration for straightforward PCB integration
• Through-hole soldering termination method for secure mechanical attachment
• Tin-plated copper-tin contacts ensure durable conductivity and oxidation resistance
• Polyamide insulation material provides structural stability and thermal resilience

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring standard pin spacing
• Industrial control systems utilizing through-hole interconnects
• Consumer electronics manufacturing with high-volume board production
• Test and measurement equipment interface modules

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm plating thickness and material specifications. Ensure that the selected variant matches the required contact count and row configuration for your design. Cross-reference the part number with official Fischer Elektronik documentation to validate availability and compliance with recent RoHS directives before finalizing procurement orders.

Headers, Male Pins Selection Notes

Choose this component when a single-row male header with a 2.54 mm pitch is required for through-hole applications. Confirm that the board layout accommodates the specified contact length and housing dimensions. Evaluate the tin plating suitability for the intended environmental conditions and mating cycle requirements. Ensure compatibility with existing assembly processes and reflow profiles defined by the manufacturer.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of PCB connectors manufactured by Fischer Elektronik. The series includes various configurations of male headers designed for different contact counts and mounting styles. These connectors are widely used in the industry for their standardized dimensions and reliable performance in general electronic applications. The SL 11 series emphasizes ease of use and compatibility with standard manufacturing techniques.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik's official substitution guide or distributor databases for direct equivalents. Verify that any alternative part matches the 2.54 mm pitch, 24-contact count, and single-row male configuration. Ensure mechanical dimensions and plating specifications are compatible with existing assembly processes before switching suppliers.
