SL 11 164 26 G

Headers, Male Pins Overview

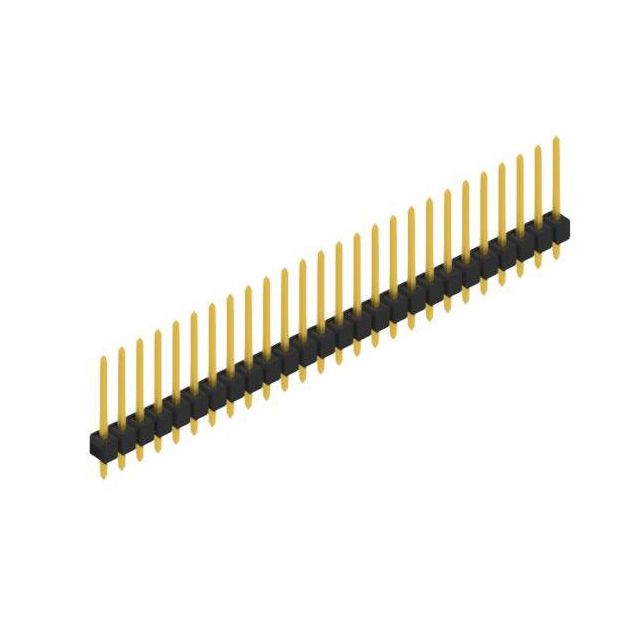

The SL 11 164 26 G is a single-row male pin header manufactured by Fischer Elektronik. It features 26 contacts with a 2.54 mm pitch, designed for through-hole mounting on printed circuit boards. The connector utilizes gold-plated copper-tin contacts to ensure reliable signal transmission and corrosion resistance. The housing is constructed from glass-filled polyamide (PA46), providing mechanical stability and thermal endurance. This component is intended for general-purpose electronic interconnections where secure board-to-board or cable-to-board connections are required.

Headers, Male Pins Feature Summary

• Gold-plated contact surfaces enhance conductivity and long-term reliability in demanding environments.
• Glass-filled polyamide insulation offers structural rigidity and heat resistance for stable operation.
• Single-row male pin configuration facilitates straightforward assembly and high-density layout options.

Headers, Male Pins Applications

• General-purpose electronic equipment interconnections
• Industrial control system board assemblies
• Consumer electronics internal wiring

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact plating thickness and material specifications. Ensure that the selected variant matches the required current rating and temperature range for your application. Cross-reference the part number with authorized distributors to confirm availability and authenticity before placing orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with gold contacts is required for through-hole applications. Consider the 2.54 mm pitch compatibility with mating connectors and PCB footprint dimensions. Evaluate the operating temperature range and mechanical durability requirements of the target environment to ensure suitability.

Headers, Male Pins Part Context

This part belongs to the SL series of pin headers from Fischer Elektronik, which provides various configurations for board-level connectivity. The SL 11 164 26 G represents a standard option within this lineup, focusing on robust construction and reliable electrical performance for industrial and commercial electronics manufacturing.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik's official substitution guide for compatible alternatives. Verify that any substitute maintains identical pin count, pitch, and contact plating specifications to ensure functional equivalence without redesigning the PCB footprint.

Headers, Male Pins FAQ

What is the contact material used in this connector?

The contacts are made from copper tin, plated with gold to improve conductivity and corrosion resistance.

Is this connector suitable for high-temperature environments?

Yes, the glass-filled polyamide (PA46) insulation provides thermal stability suitable for standard operating conditions.
