SL 11 164 27 G

Headers, Male Pins Overview

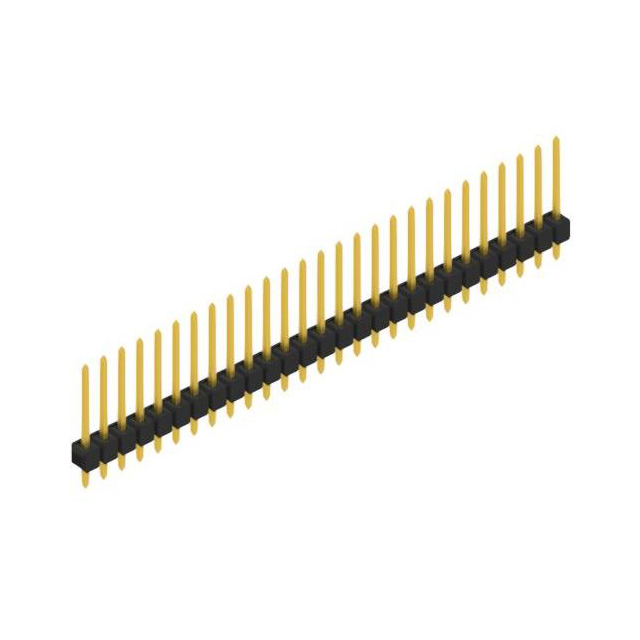

The SL 11 164 27 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 27 positions and a 0.100 inch (2.54 mm) pitch. The component utilizes through-hole termination for PCB mounting. Contact plating consists of gold over nickel, providing corrosion resistance and reliable conductivity. The insulating material is polyamide (PA46), rated for an operating temperature range of -40°C to +163°C. Electrical ratings include 3A current capacity and 250VAC voltage rating.

Headers, Male Pins Feature Summary

• Single-row male pin header design for compact board-to-board or wire-to-board interconnects
• Gold-plated contacts ensure durable electrical performance and oxidation resistance
• Polyamide insulation supports high-temperature soldering processes up to 260°C

Headers, Male Pins Applications

• Industrial control system circuit boards
• Consumer electronics assembly
• Communication equipment interfaces

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix matches the required contact plating thickness and terminal configuration. Confirm that the 27-position count aligns with the target PCB footprint dimensions. Ensure the through-hole pin length accommodates the board thickness and desired standoff height. Cross-reference the datasheet drawing for precise mechanical tolerances before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with gold contacts is required for 2.54mm pitch applications. The PA46 insulation material offers suitable thermal stability for standard reflow soldering profiles. Consider the 3A current rating for power distribution needs within the specified voltage limits. Verify compatibility with mating female socket connectors from the same product series.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of precision-engineered electronic components. The series focuses on reliable connectivity solutions for various industrial and commercial applications. The SL 11 designation indicates a specific form factor and contact arrangement within the manufacturer's broader portfolio of rectangular connectors and headers.

Headers, Male Pins Replacement Considerations
