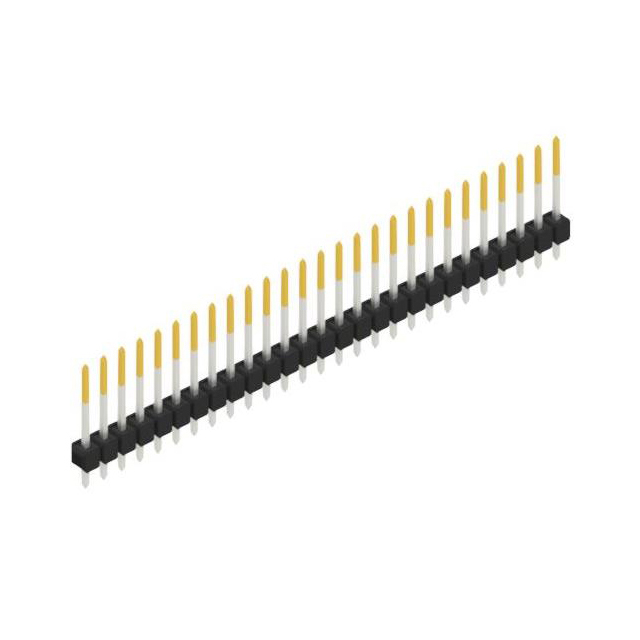

SL 11 164 27 S

Headers, Male Pins Overview

The SL 11 164 27 S is a single-row, through-hole male pin header manufactured by Fischer Elektronik. It features a 2.54 mm pitch and contains 27 contacts. The connector utilizes a PA 4.6 GF insulating body with UL 94 V-0 flammability rating. Contact plating consists of nickel underplating with a tin finish. It supports an operating temperature range from -40°C to +163°C and withstands a test voltage of 2000 V.

Headers, Male Pins Feature Summary

• Single-row board-to-board or wire-to-board interconnection design
• Through-hole mounting for secure PCB integration
• Tin-plated contacts on nickel substrate for corrosion resistance
• High thermal stability suitable for reflow soldering processes

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control system signal routing
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates the tin-plated variant when sourcing. Confirm that the 27-position configuration matches the target circuit density requirements. Ensure compatibility with standard 2.54 mm mating connectors. Check datasheet specifications for insertion depth and mechanical retention forces before final procurement decisions.

Headers, Male Pins Selection Notes

Select this component for applications requiring robust through-hole connectivity with high thermal endurance. The PA 4.6 material offers superior heat resistance compared to standard nylons. Consider the 27-pin count for moderate-density signal lines. Evaluate the straight pin orientation against available PCB real estate constraints.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of male pin headers. The series provides standardized spacing for reliable electrical connections. The model number encodes the row count, contact quantity, and plating type. It serves as a fundamental passive interconnect element in printed circuit board assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, 27 positions, and through-hole format. Verify identical insulation material properties and flammability ratings. Ensure mating connector compatibility with the tin-plated contact surface.
