SL 11 164 28 G

Headers, Male Pins Overview

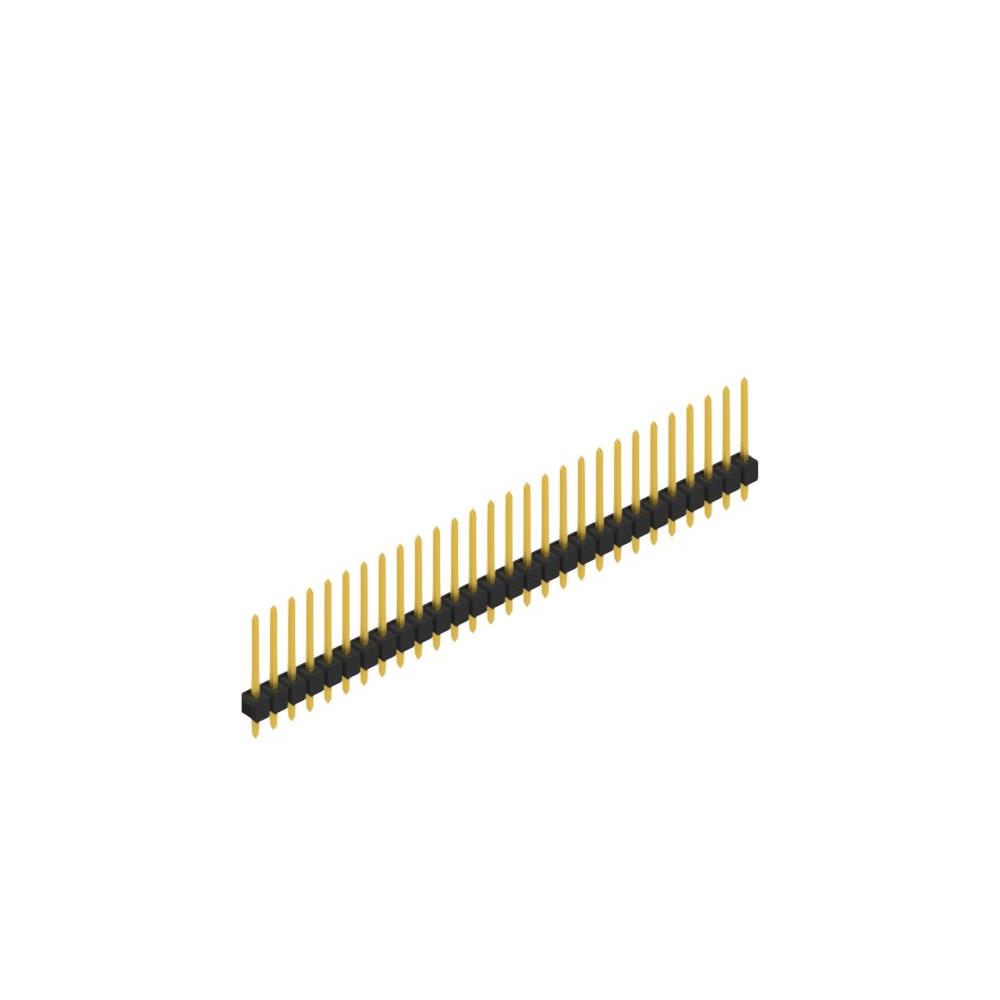

The SL 11 164 28 G is a male header connector manufactured by Fischer Elektronik. It features a single row with 28 contacts and a 2.54 mm pitch. The contact cross-section measures 0.635 mm. The housing is constructed from glass-filled polyamide (PA46) nylon, rated for operation between -40°C and +163°C. Contacts are made of copper-tin alloy with gold plating on the mating section.

Headers, Male Pins Feature Summary

• Single-row male header configuration designed for through-hole PCB mounting
• Gold-plated copper-tin contacts ensure reliable electrical connectivity
• Glass-filled PA46 insulation material provides thermal stability

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Industrial control panel wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' confirms gold plating requirements against project specifications. Ensure the 28-pin count matches the target board footprint. Confirm that the operating temperature range of -40°C to +163°C meets environmental constraints. Check compatibility with mating female connectors regarding contact geometry and pitch.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required. The gold finish is suitable for applications demanding corrosion resistance and stable contact impedance. The glass-filled nylon housing supports higher thermal loads compared to standard plastics. Verify pin count availability as the series offers various configurations.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of male headers. The series is characterized by a 2.54 mm grid spacing and 0.635 mm contact cross-section. Variants differ primarily in pin count and contact surface treatment. The SL 11 series is widely used for board-to-board or cable-to-board connections in compact electronic designs.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include SL 11 164 25 G and SL 11 164 33 S. These share identical mechanical dimensions and pitch but differ in pin count or contact finish. Ensure the replacement maintains the required gold plating if specified.
