SL 11 164 28 S

Headers, Male Pins Overview

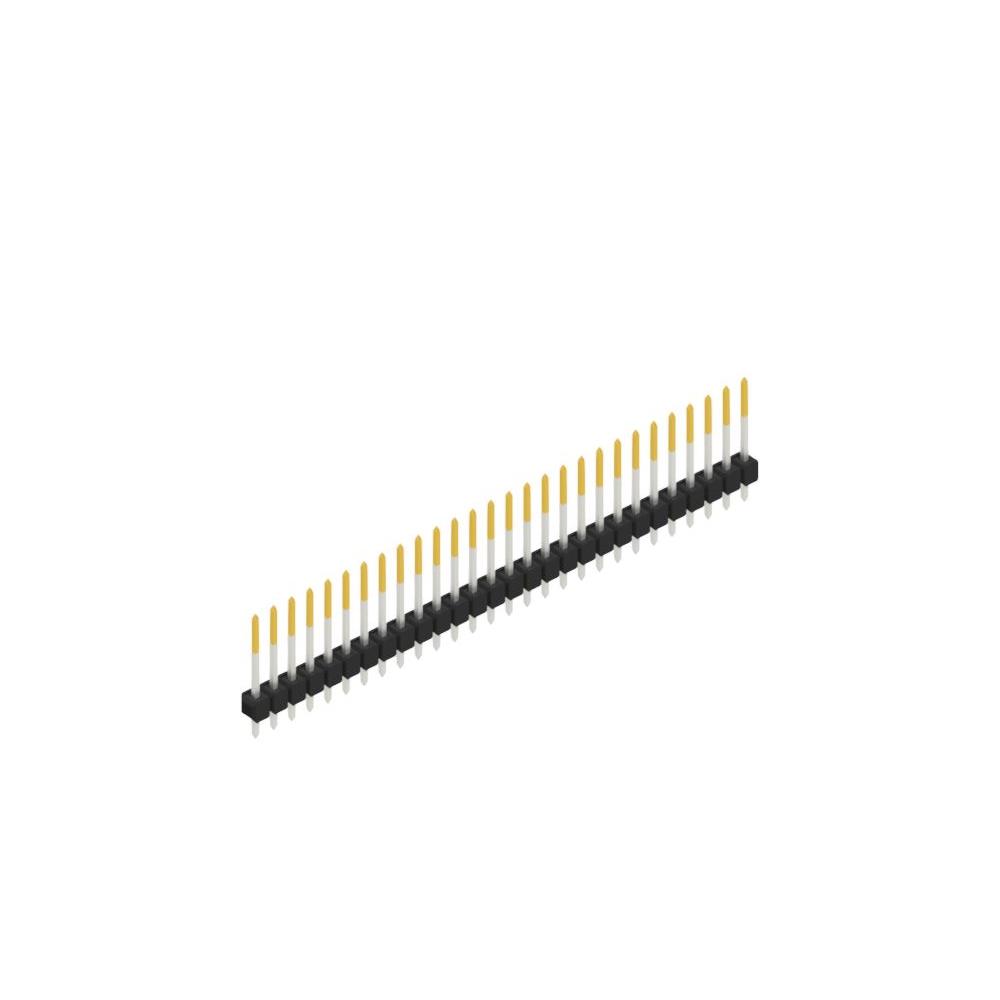

The Fischer Elektronik SL 11 164 28 S is a single-row male pin header connector designed for through-hole mounting. It features 28 positions with a 0.100 inch (2.54 mm) pitch and square contact pins. The contacts are made of copper-tin alloy with a tin finish, providing a mating length of 3.00 mm and a post length of 10.6 mm. The insulation material is polyamide (PA46), glass-filled nylon, ensuring stability across an operating temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Single-row configuration with square cross-section pins for precise alignment
• Through-hole termination method for secure PCB attachment
• Glass-filled polyamide insulation for thermal and mechanical stability

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board connections
• General electronic assembly requiring reliable signal routing

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against the manufacturer's datasheet to confirm the exact plating thickness and material composition, as suffixes often denote critical variations in contact finish or insulation properties. Ensure the ordering part number matches the required pin count and row configuration exactly to avoid compatibility issues with mating connectors.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole applications. Consider the operating temperature range and the square pin geometry for mating compatibility. Verify that the board layout accommodates the specified overall dimensions and that the tin-plated contacts meet the environmental requirements for the intended application.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered electronic components from Fischer Elektronik. The series offers various pin counts and configurations within a standardized 2.54 mm pitch framework. The SL 11 164 28 S specifically represents a 28-position variant within this family, maintaining consistent dimensional and electrical characteristics across the series.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 28-pin count, 2.54 mm pitch, single-row layout, and through-hole mounting style. Verify that any alternative component shares the same square pin profile and compatible insulation material to ensure proper fit and function in existing assemblies.
