SL 11 164 28 Z

Headers, Male Pins Overview

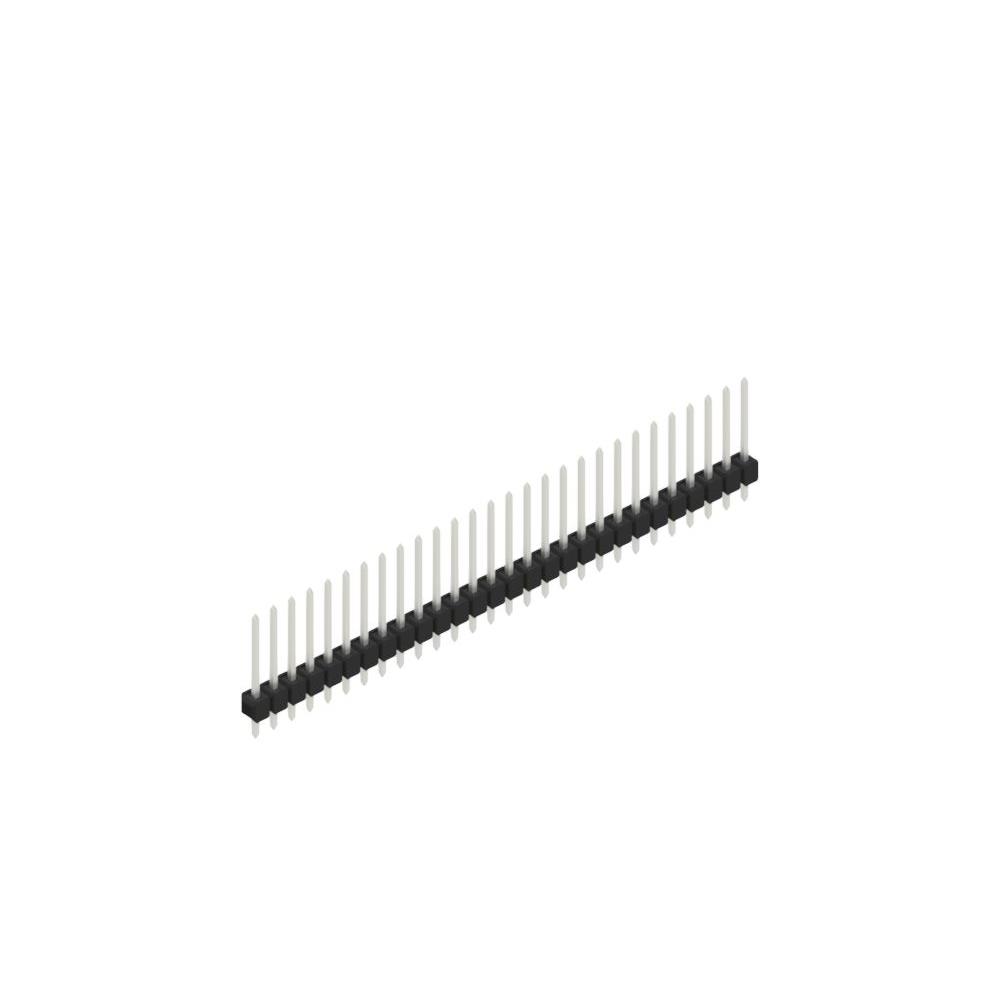

The SL 11 164 28 Z is a single-row male header connector manufactured by Fischer Elektronik. It features 28 positions with a 0.100 inch (2.54 mm) pitch. The contacts are designed for through-hole mounting and have a square cross-section of 0.635 mm. The contact length for mating is 0.213 inches (5.40 mm), while the pin length is 0.118 inches (3.00 mm). The total contact length measures 0.441 inches (11.20 mm). The insulator height is 0.110 inches (2.80 mm). Contacts are made of copper-tin with a tin surface finish, featuring a thickness of 157.5 µin (4.00 µm).

Headers, Male Pins Feature Summary

• Single row male header configuration with 28 positions.
• Through-hole mounting design for PCB integration.
• Square contact cross-section measuring 0.635 mm.
• Tin-plated copper-tin contact material for reliable connection.

Headers, Male Pins Applications

• General electronic circuit interconnections.
• PCB-to-PCB communication links.
• Industrial control panel wiring.

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against the manufacturer's current datasheet to ensure compatibility with required termination or packaging specifications. Confirm that the 28-position count matches the design requirements. Check for any recent updates to the series documentation regarding material compliance or mechanical tolerances before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 28-pin male header is required for through-hole applications. Ensure the 2.54 mm pitch aligns with the mating connector footprint. Consider the 0.635 mm contact cross-section for current carrying capacity needs. Verify that the square pin shape is compatible with the intended socket or cable assembly interface.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male headers from Fischer Elektronik. The series offers various contact counts ranging from 1 to 36 positions in a single row. All units share a consistent 2.54 mm pitch and 0.635 mm contact cross-section. The SL 11 164 28 Z represents a mid-range position count within this standardized family of rectangular connectors.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other Fischer Elektronik SL 11 series headers with identical 28-position counts and through-hole termination. Cross-manufacturer replacements require matching the 2.54 mm pitch, square pin profile, and overall height dimensions to ensure mechanical fit.
