SL 11 164 29 G

Headers, Male Pins Overview

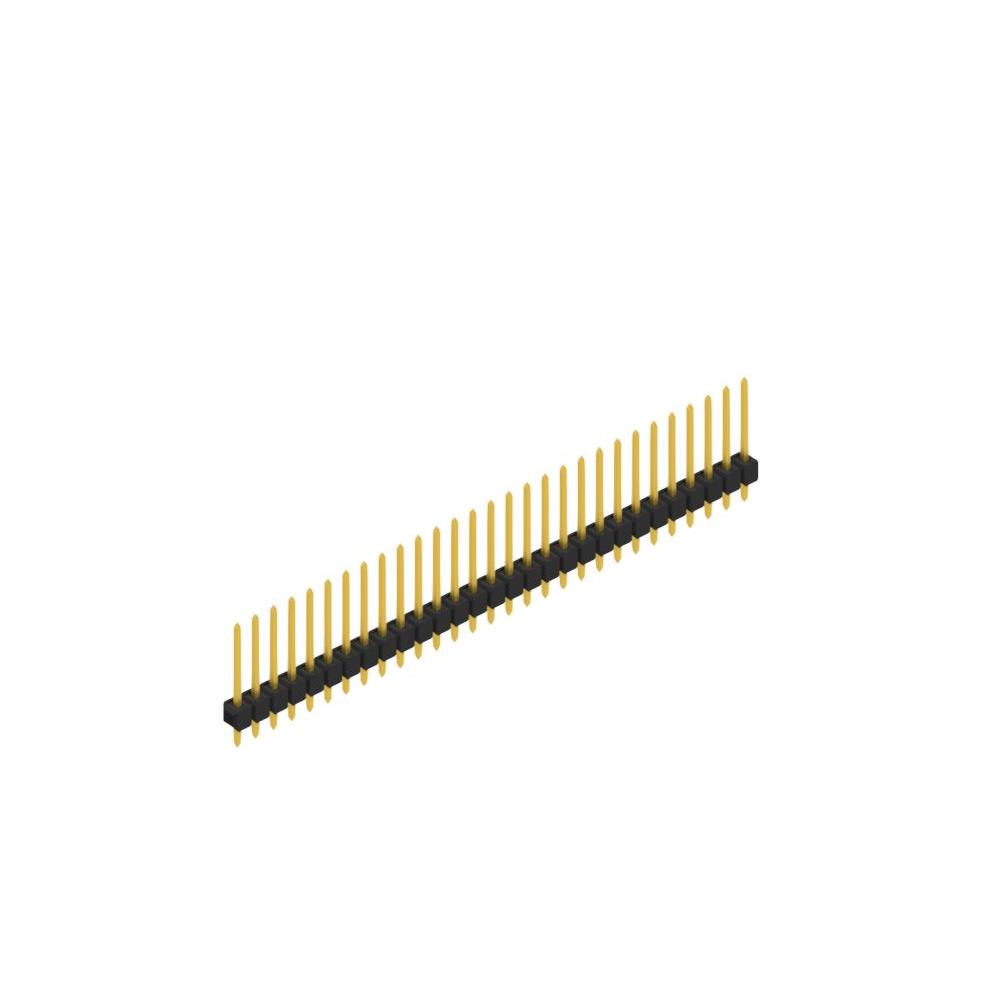

The SL 11 164 29 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 29 positions and a 0.100 inch (2.54 mm) pitch. The contacts are gold-plated for reliable conductivity. Designed for through-hole mounting, the connector has an overall pin length of 1.142 inches (29.00 mm), with a mating length of 0.433 inches (11.00 mm) and a tail length of 0.130 inches (3.30 mm).

Headers, Male Pins Feature Summary

• Single-row male pin header configuration for board-to-board or wire-to-board connections.
• Gold-plated contact surfaces ensure durable electrical performance.
• Through-hole mounting style provides secure PCB attachment.

Headers, Male Pins Applications

• Electronic assembly requiring single-row interconnects.
• Board-to-board stacking applications.
• Wire-to-board connection setups.

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm contact plating and material specifications. Ensure the component matches the required row count and pin quantity for the target design. Cross-reference the datasheet dimensions against the mechanical constraints of the host PCB layout before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a single-row, gold-plated header is required. Confirm that the 29-position count aligns with circuit requirements. Verify that the through-hole installation method is compatible with the manufacturing process and that the spacing meets the design rules.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of pin headers. The series offers various configurations in terms of position count and row arrangement. The SL 11 164 variant specifically denotes the physical dimensions and contact arrangement characteristics within this product line.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik documentation for direct substitutes. Verify that any alternative maintains the same 2.54 mm pitch, single-row structure, and gold plating to ensure mechanical and electrical compatibility.
