SL 11 164 29 S

Headers, Male Pins Overview

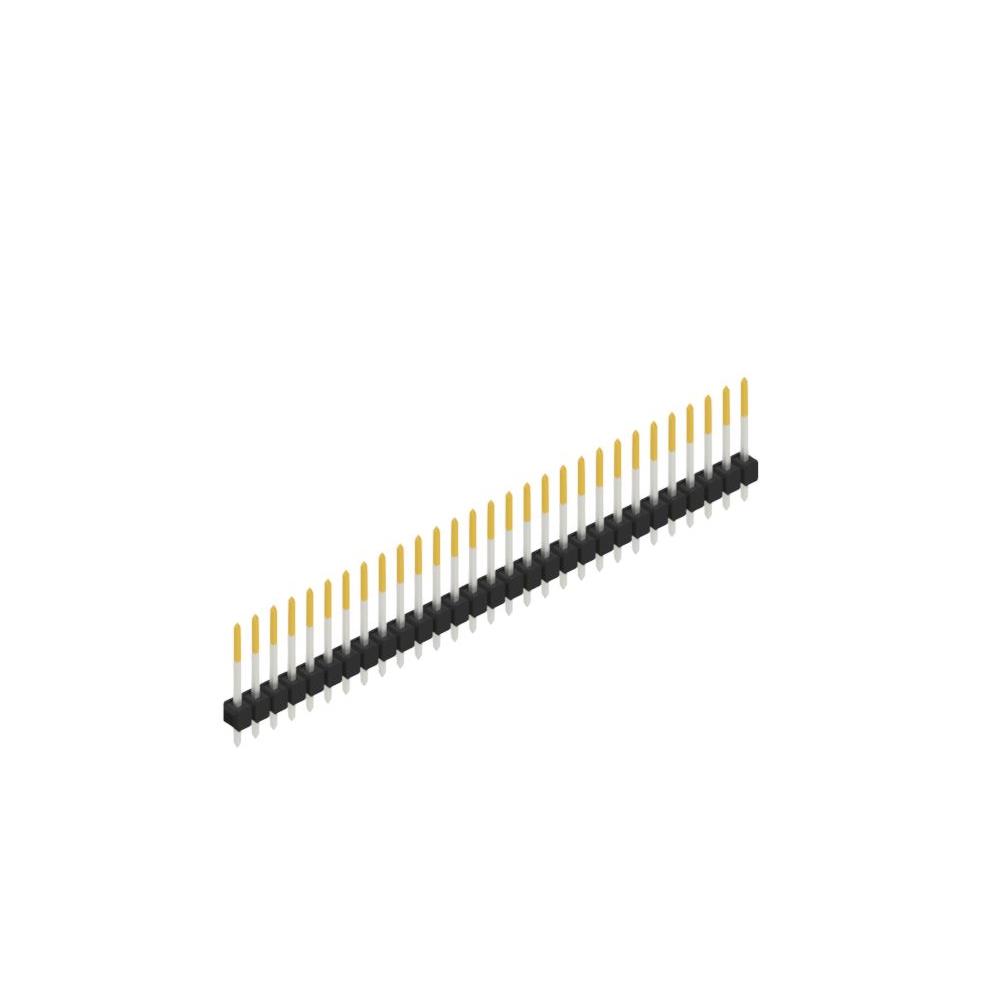

The SL 11 164 29 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features 29 positions with a standard 0.100-inch (2.54 mm) pitch. The connector utilizes through-hole mounting for secure PCB integration. Contact materials are copper alloy, finished with tin plating to ensure reliable electrical conductivity and corrosion resistance. The design supports insertion depths of 3.00 mm into the printed circuit board.

Headers, Male Pins Feature Summary

• Single-row male pin header configuration for direct PCB mounting
• Standard 2.54 mm pitch ensures compatibility with common interconnect systems
• Tin-plated copper contacts provide durable electrical connections

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Signal routing in industrial control modules
• Prototyping and development board assemblies

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'S' corresponds to the required contact length and packaging format as defined in the official Fischer Elektronik datasheet. Confirm that the 29-position count matches the target design requirements. Ensure compliance with relevant environmental directives such as RoHS if applicable to the project specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 2.54 mm pitch is required for through-hole applications. The 29-position count suits designs needing moderate signal density. Consider the tin-plated contact finish for general use cases where gold plating is not strictly necessary. Verify mechanical fit within the available PCB area and height constraints.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of pin headers from Fischer Elektronik. The series offers various pole counts and configurations for different PCB mounting needs. The SL 11 164 variant specifically denotes the physical dimensions and row structure associated with this product line, ensuring standardized mechanical interfaces across compatible components.

Headers, Male Pins Replacement Considerations

Consult the official Fischer Elektronik catalog for exact cross-references. No public substitute part numbers are confirmed in the provided documentation.
