SL 11 164 29 Z

Headers, Male Pins Overview

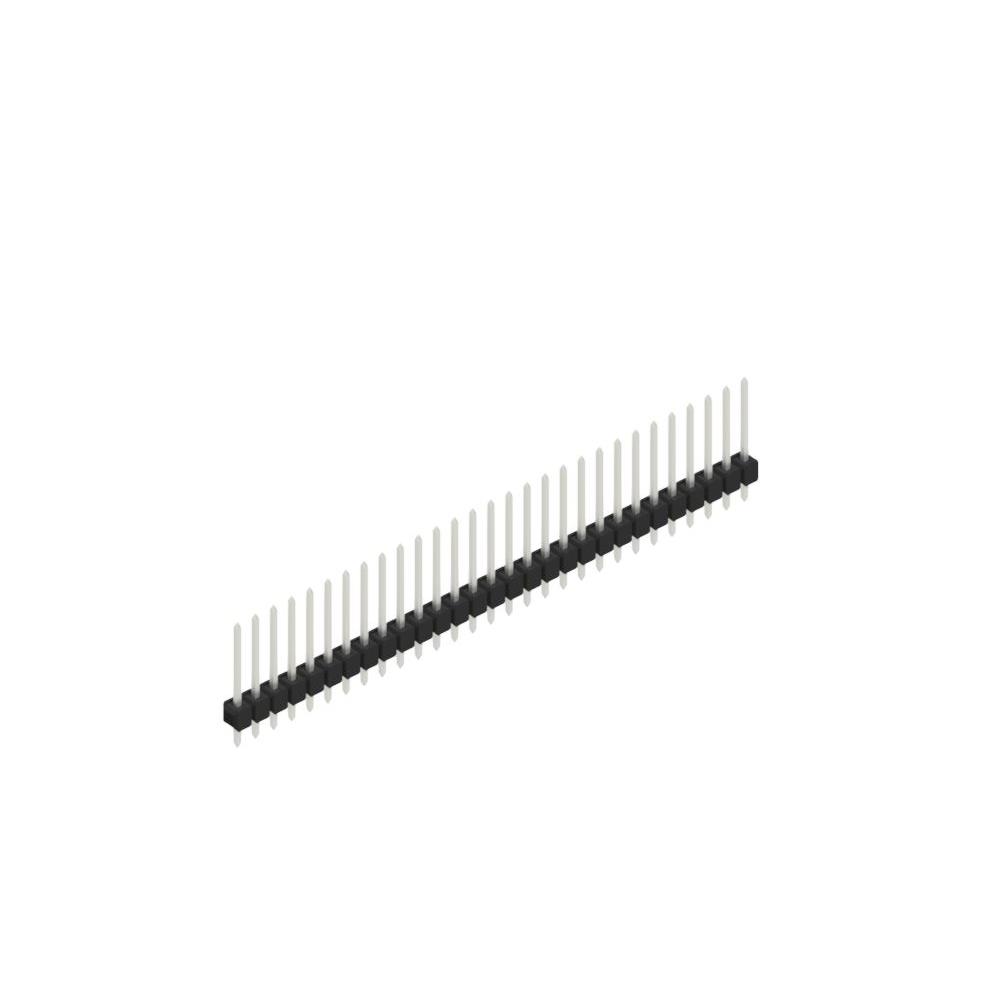

The SL 11 164 29 Z is a single-row male pin header manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) contact pitch and contains 29 positions. Designed for through-hole mounting, the connector utilizes square pins with tin-plated contacts to ensure reliable electrical connections. The housing is constructed from polyamide (PA46), providing structural integrity and insulation. This component belongs to the SL 11 series, which is characterized by its precision engineering and compact form factor suitable for dense circuit board layouts.

Headers, Male Pins Feature Summary

• Single-row configuration with 0.635 mm pitch for compact connectivity
• Through-hole mounting style for secure PCB attachment
• Tin-plated square pins for corrosion resistance and conductivity
• Polyamide (PA46) insulating material for durability

Headers, Male Pins Applications

• General-purpose electronic interconnects
• Compact circuit board assemblies requiring high-density connections
• Precision-engineered hardware systems

Headers, Male Pins Procurement Notes

Verify the specific part number suffix 'Z' against official Fischer Elektronik documentation to confirm exact plating thickness and material specifications. Ensure compatibility with mating connectors regarding pitch and row count. Cross-reference the 29-position requirement with available datasheets to confirm availability and current production status before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row header with a fine 0.635 mm pitch is required for space-constrained applications. The through-hole design offers mechanical stability compared to surface-mount alternatives. Consider the tin-plated contact finish for standard environmental conditions. Verify that the 29-pin length fits within the available board area and that mating connectors support the specified square pin geometry.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of pin headers. The series is known for offering various pin counts and configurations while maintaining a consistent 0.635 mm pitch. The SL 11 164 variant specifically denotes the single-row format. Similar parts in the series include different pin counts such as SL 11 164 1 Z or SL 11 164 11 Z, allowing for scalable design options within the same footprint constraints.
