SL 11 164 30 G

Headers, Male Pins Overview

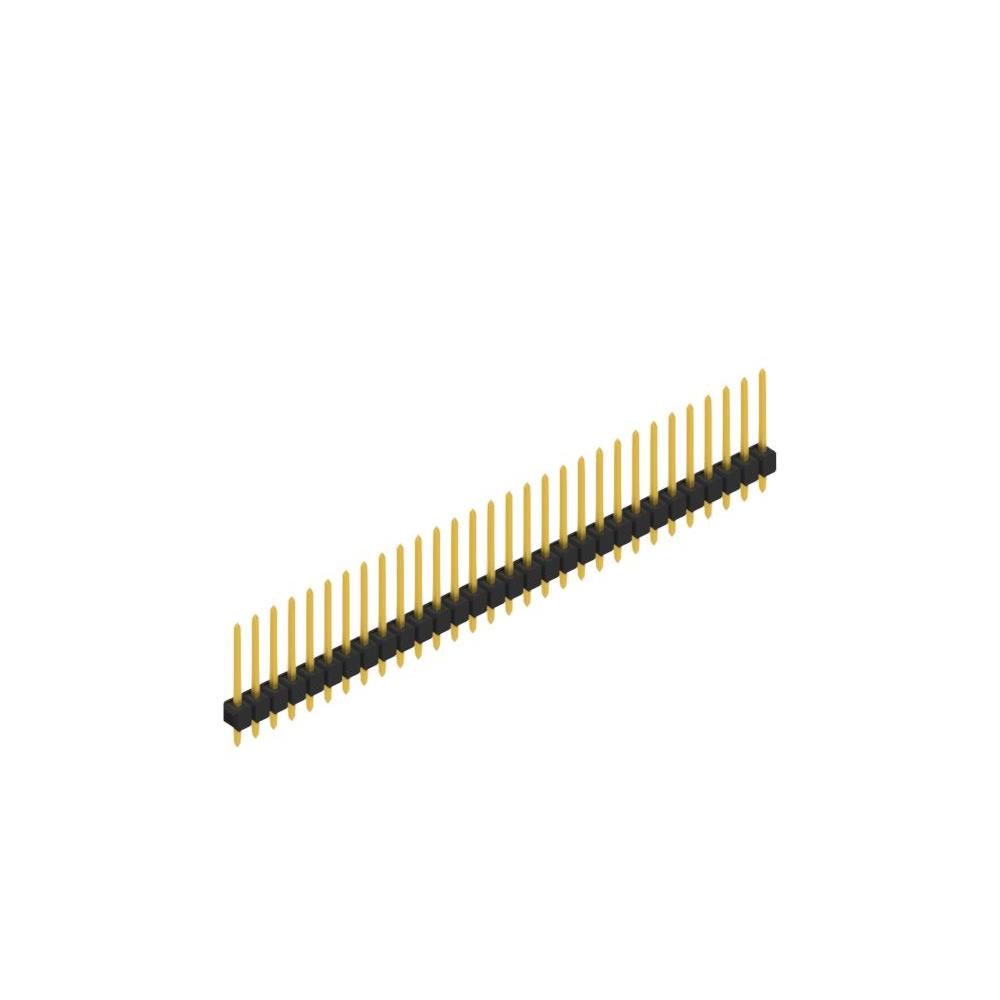

The SL 11 164 30 G is a single-row male pin header manufactured by Fischer Elektronik. It features a 0.635 mm pitch and contains 30 positions. The connector is designed for through-hole mounting on printed circuit boards. Contact surfaces are gold-plated over nickel, with a minimum gold thickness of 0.2 µm. The unit operates within a temperature range of -40°C to +163°C and withstands soldering at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for board-to-board or cable connections
• Gold-over-nickel contact plating for enhanced corrosion resistance
• Through-hole termination method for secure PCB attachment

Headers, Male Pins Applications

• Industrial control panel interconnections
• Test and measurement equipment headers
• Consumer electronics internal wiring

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' corresponds to the gold plating specification in the official Fischer Elektronik datasheet. Confirm that the 30-position count matches the required circuit density. Ensure the 0.635 mm pitch aligns with the mating connector footprint. Check RoHS compliance status if required for the target market.

Headers, Male Pins Selection Notes

Select this component when a low-profile, high-reliability header with gold contacts is required. The 0.635 mm pitch offers tighter spacing than standard 2.54 mm headers. Consider the thermal stability up to 163°C for processes requiring higher heat tolerance. Evaluate mechanical retention needs for through-hole applications.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male headers from Fischer Elektronik. The series provides various pin counts and dimensions while maintaining consistent electrical characteristics. The SL 11 164 variant specifically denotes the physical dimensions associated with the 30-position configuration.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 0.635 mm pitch, 30-pin count, and gold plating. Verify identical housing dimensions and terminal geometry. Cross-reference with Fischer Elektronik's updated product lists for equivalent replacements.
