SL 11 164 30 S

Headers, Male Pins Overview

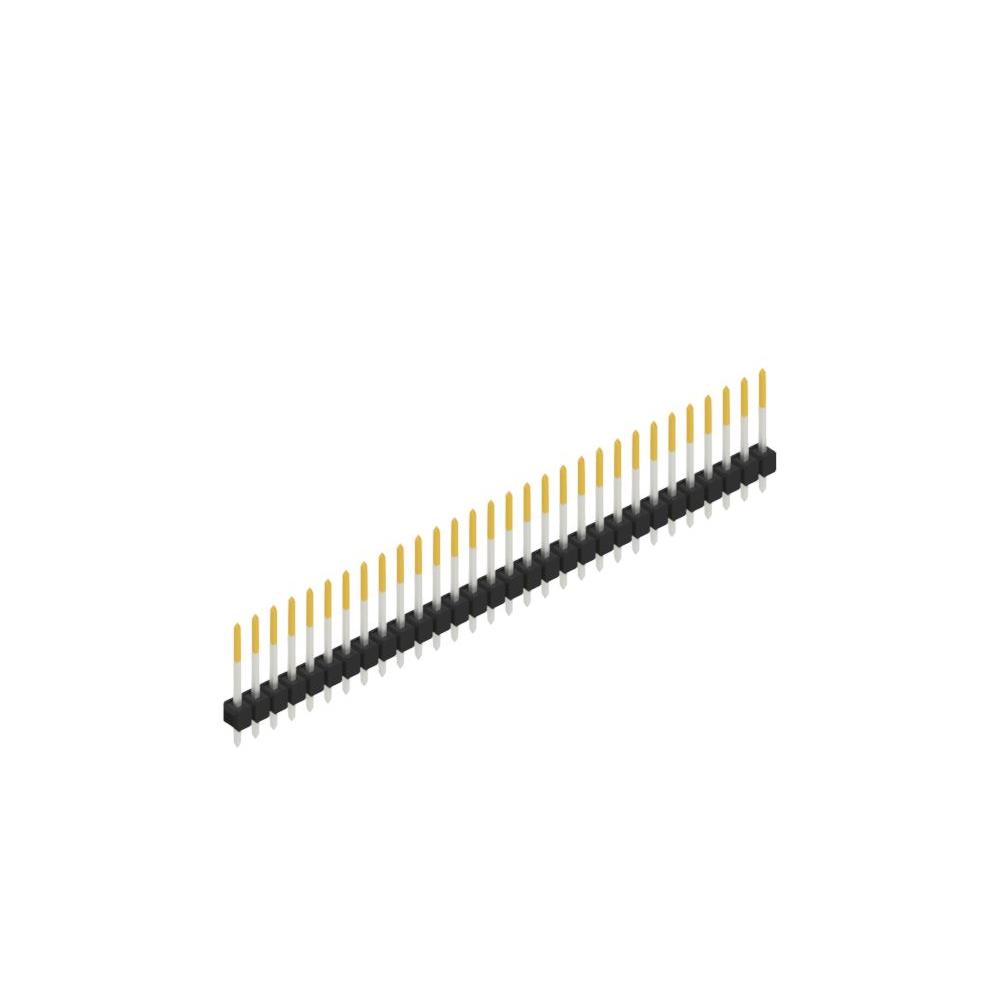

The SL 11 164 30 S is a single-row male pin header connector from the Fischer Elektronik SL 11 series. It features 30 positions with a 2.54 mm (0.100 inch) pitch. The connector utilizes square pins made of copper-tin alloy, plated with tin (Sn) on the mating side and nickel-tin on the column side. Key dimensions include a total contact length of 11.20 mm, a mating contact length of 5.40 mm, and a column contact length of 3.00 mm. The insulator height is 2.80 mm, constructed from polyamide (PA46).

Headers, Male Pins Feature Summary

• Single-row male pin strip design for through-hole PCB mounting.
• Square pin cross-section geometry for secure mechanical retention.
• Tin-plated contacts ensuring reliable electrical conductivity.
• Polyamide insulation material providing thermal stability.

Headers, Male Pins Applications

• General-purpose PCB interconnections
• Signal routing in electronic assemblies
• Prototype development boards

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against the manufacturer's datasheet to confirm tin plating specifications. Ensure the 30-position count matches the required circuit density. Confirm that the through-hole footprint aligns with the PCB layout constraints before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required. The square pin design offers distinct mechanical advantages over round pins. Verify compatibility with mating female connectors that accept square shafts. Consider the operating temperature range specified in the official documentation.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of pin strips. The series offers various position counts and row configurations. The SL 11 164 variant specifically denotes the housing style and dimensional profile within the product line.

Headers, Male Pins Replacement Considerations

Compatible substitutes must match the 2.54 mm pitch, 30 positions, single-row configuration, and square pin geometry. Verify that alternative manufacturers offer identical tin-plated contacts and PA46 insulation materials to ensure interchangeability.
