SL 11 164 30 Z

Headers, Male Pins Overview

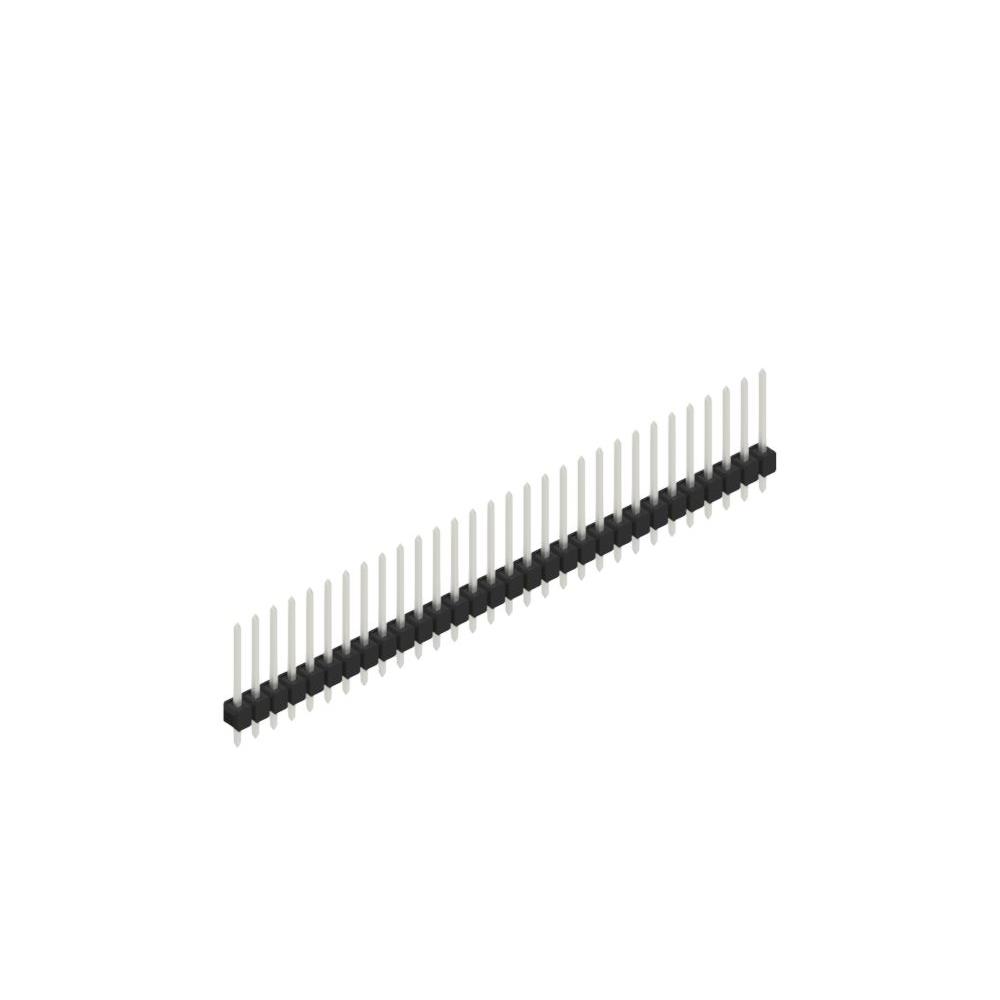

The Fischer Elektronik SL 11 164 30 Z is a single-row male pin header connector designed for through-hole mounting. It features 30 positions with a 2.54 mm (0.100 inch) pitch. The contacts are constructed from copper-tin alloy and tin-plated, providing a contact resistance of ≤5 mΩ. Rated for 3 A current at 250 V AC, it withstands 2000 V dielectric voltage. The insulator is made of PA 4.6 nylon with UL 94 V-0 flammability rating.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard PCB interconnection
• Tin-plated copper-tin alloy contacts ensuring low resistance
• PA 4.6 insulator material with UL 94 V-0 flame retardancy

Headers, Male Pins Applications

• General electronic circuit board interconnections
• Industrial control system wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific part number suffix 'Z' against official Fischer Elektronik documentation to confirm plating specifications and packaging details. Ensure compatibility with mating female connectors regarding pitch and contact geometry. Cross-reference the 30-position count and through-hole termination style with design requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole applications. The 3 A current rating and 250 V AC voltage limit define its electrical boundaries. Consider the PA 4.6 insulation material for thermal stability and the tin-plated contact finish for solderability and corrosion resistance in standard environments.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of precision-engineered electronic connectors by Fischer Elektronik. The series offers various pole counts and row configurations. The SL 11 164 variant specifically denotes the housing dimensions and contact arrangement within this product line, standardized for reliable PCB mounting.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Verify mechanical footprint and electrical ratings against alternative suppliers if sourcing changes are necessary.
