SL 11 164 31 G

Headers, Male Pins Overview

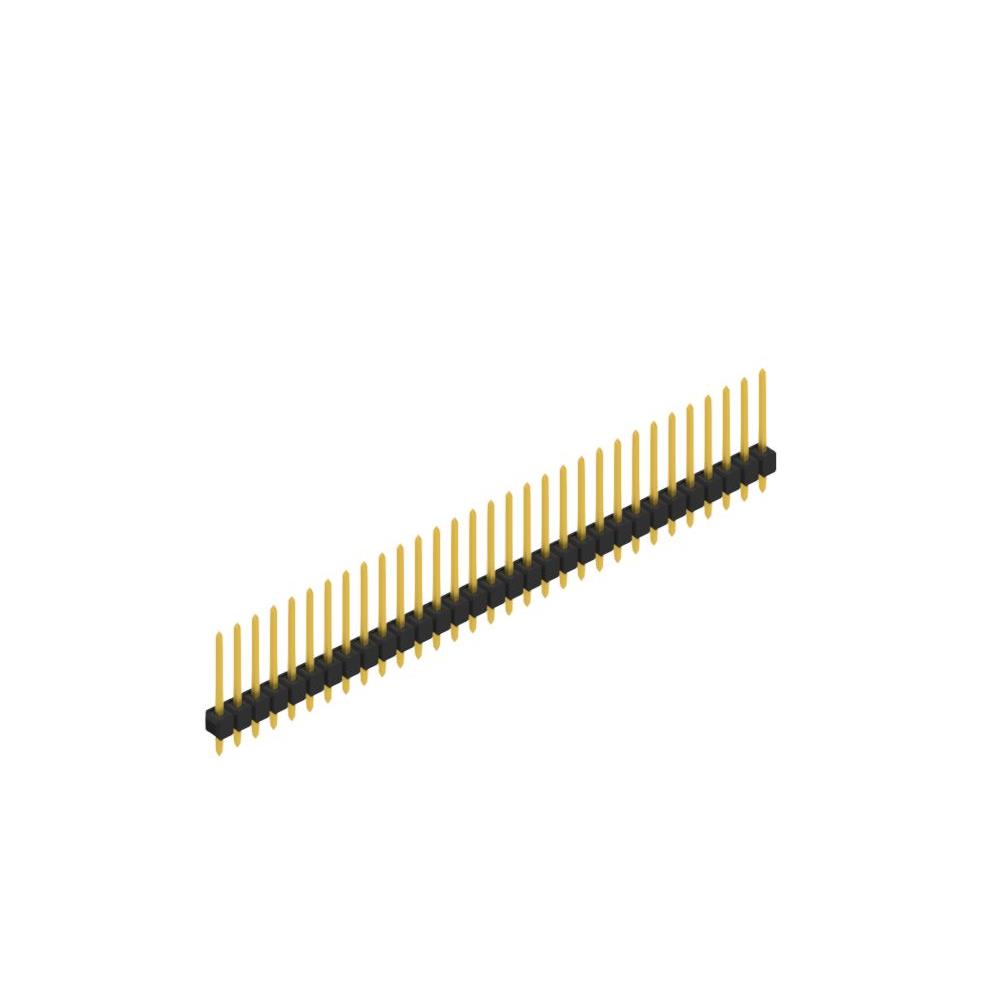

The SL 11 164 31 G is a single-row male header connector manufactured by Fischer Elektronik. It features 31 positions with a 2.54 mm (0.100 inch) pin spacing. The connector utilizes square pins with a 0.635 mm dimension and gold plating for reliable contact. Designed for through-hole mounting, it serves as a board-to-board or wire-to-board interconnection solution in electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row configuration with 31 gold-plated male pins
• Square pin cross-section for secure mating stability
• Through-hole termination method for PCB integration

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board connection assemblies
• General electronic circuit prototyping

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' confirms gold plating rather than tin, as this affects corrosion resistance and solderability requirements. Confirm the 31-position count matches the design footprint. Ensure the single-row format aligns with available panel space. Cross-reference the datasheet for precise mechanical tolerances before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, gold-plated header is required for 31 connections. The 2.54 mm pitch is standard for general-purpose electronics. Consider the square pin shape for enhanced mechanical retention during mating cycles compared to round pins. Evaluate thermal management needs if high current applications are involved.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered electronic components from Fischer Elektronik. The series offers various pin counts and row configurations. The SL 11 164 variant specifically denotes the physical dimensions and form factor, while the number 31 indicates the terminal count. This model represents a standard industrial-grade interconnect solution.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik headers within the SL 11 series that match the 31-position count and single-row layout. Verify that alternative parts maintain the 2.54 mm pitch and gold plating specification to ensure electrical compatibility.
