SL 11 164 31 S

Headers, Male Pins Overview

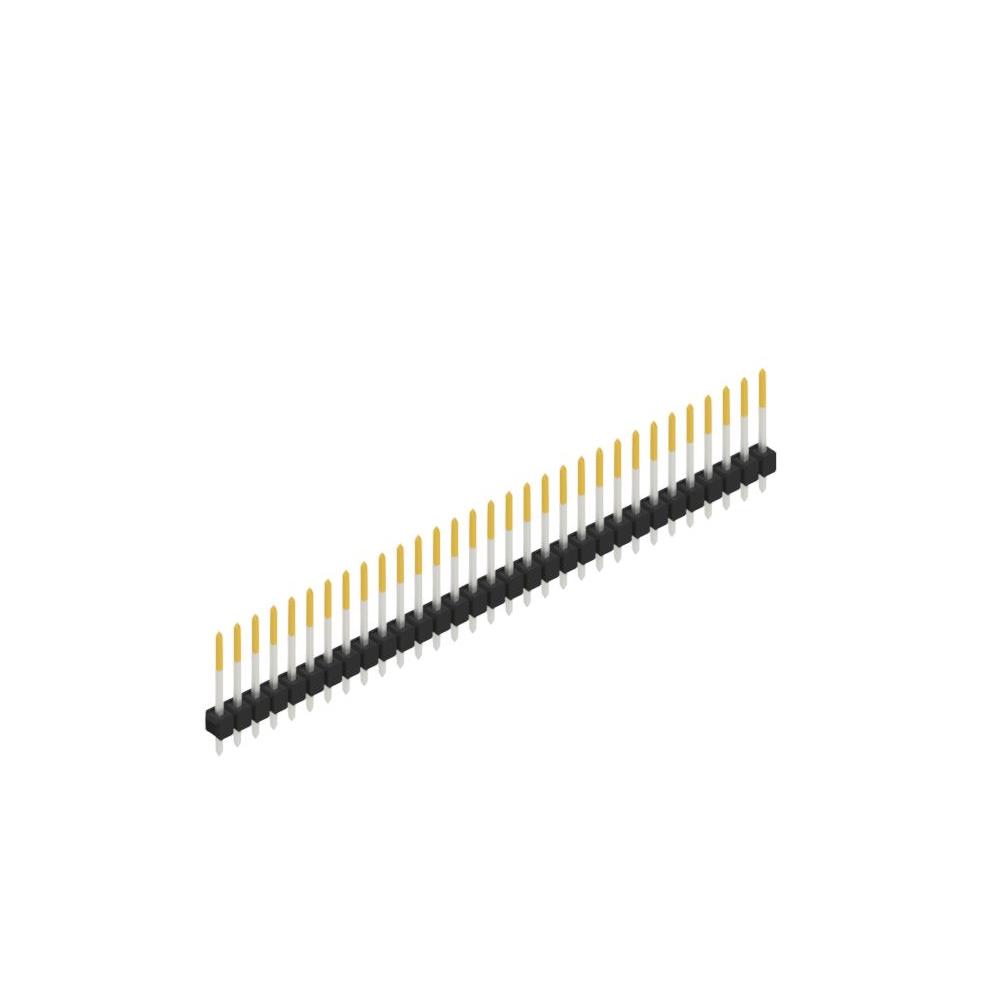

The SL 11 164 31 S is a single-row male header connector manufactured by Fischer Elektronik. It features a 0.635 mm pitch and contains 31 positions. The connector utilizes through-hole termination for PCB mounting. Contact materials are copper alloy with tin plating on both the mating and pin surfaces. The housing is constructed from polyamide (PA46) nylon, rated UL 94 V-0 for flammability. Total contact length measures 0.441 inches (11.20 mm), with an insulation height of 0.110 inches (2.80 mm).

Headers, Male Pins Feature Summary

• Single-row male header design for compact circuit board integration.
• Through-hole termination method ensures secure mechanical attachment to printed circuit boards.
• Tin-plated copper alloy contacts provide reliable electrical conductivity and corrosion resistance.
• Polyamide (PA46) nylon housing offers structural stability and UL 94 V-0 flame retardancy.

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring single-row interconnects.
• Industrial control systems utilizing standard pin headers.
• Consumer electronics manufacturing with space-constrained layouts.

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against the manufacturer's official documentation to confirm exact plating thickness and material specifications. Ensure compatibility with mating female connectors regarding the 0.635 mm pitch dimension. Confirm that the through-hole footprint matches the target PCB design guidelines before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row configuration with a 0.635 mm pitch is required. Consider the 31-position count for signal routing density. Evaluate the through-hole installation method against surface-mount alternatives if mechanical stress resistance is a priority. Verify that the tin-plated contact finish meets the environmental requirements of the application.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered electronic components from Fischer Elektronik. The series is characterized by compact form factors and standardized pitches. The SL 11 164 designation indicates specific dimensional parameters within the family. This model represents a standard male header variant designed for general connectivity needs in electronic hardware.
