SL 11 164 31 Z

Headers, Male Pins Overview

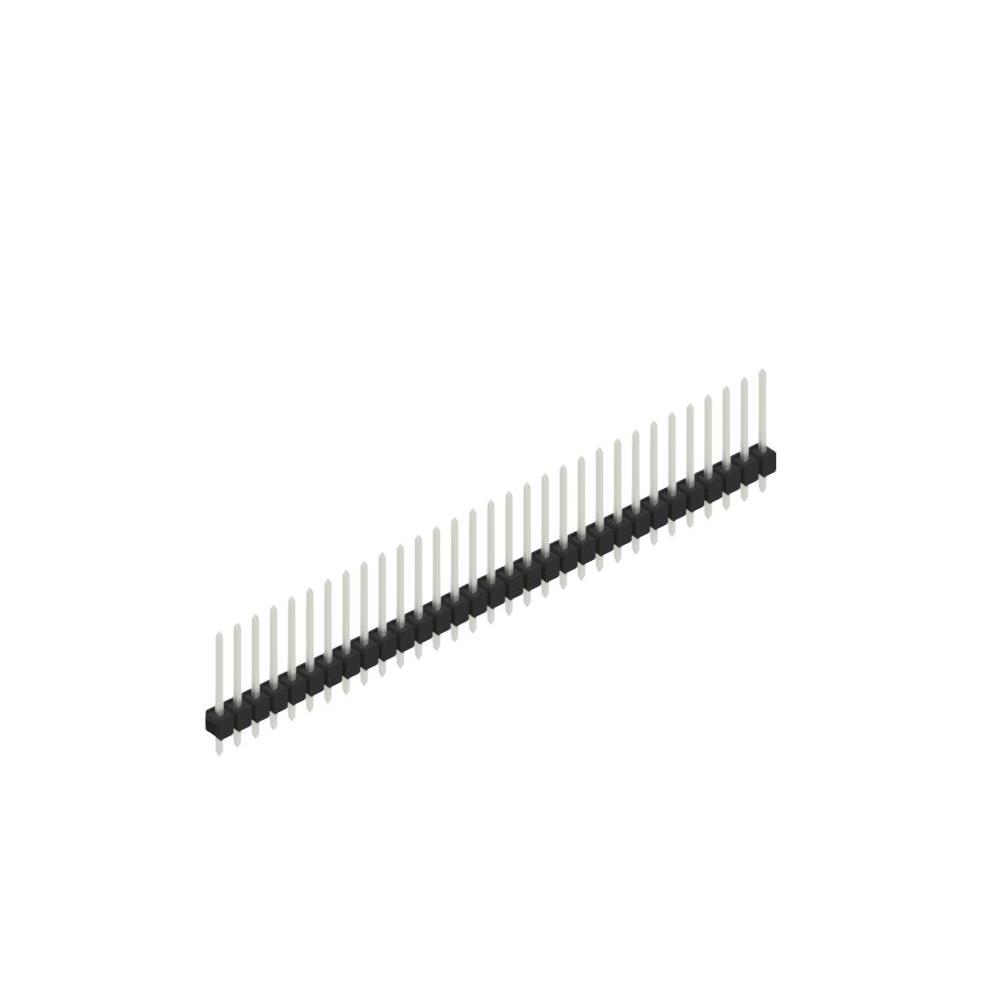

The SL 11 164 31 Z is a single-row male pin header manufactured by Fischer Elektronik. It features 31 positions with a 0.100 inch (2.54 mm) pitch, designed for through-hole mounting on printed circuit boards. The connector utilizes square-shaped tin-plated copper-tin contacts. Key dimensional specifications include an overall contact length of 0.441 inches (11.20 mm), a mating contact length of 0.213 inches (5.40 mm), and a column contact length of 0.118 inches (3.00 mm). The insulation height is 0.110 inches (2.80 mm), constructed from polyamide (PA46).

Headers, Male Pins Feature Summary

• Single-row design for compact board-to-board or wire-to-board connectivity.
• Through-hole termination method ensures secure mechanical attachment to PCBs.
• Tin-plated contacts provide reliable electrical performance and corrosion resistance.

Headers, Male Pins Applications

• General-purpose electronic interconnects in consumer devices.
• Industrial control panel wiring connections.
• Communication equipment signal routing.

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm contact count and series alignment. Ensure compatibility with mating female headers regarding pitch and contact geometry. Check for any ordering suffixes that may indicate variations in plating or packaging, as these affect functional specifications. Confirm availability through authorized distributors to guarantee component authenticity and traceability.

Headers, Male Pins Selection Notes

Select this component when a single-row, 31-position through-hole header is required. The 2.54 mm pitch is standard for general electronics, ensuring broad compatibility with mating connectors. Consider the PA46 insulation material for thermal stability during soldering processes. Evaluate the tin plating thickness if specific environmental resistance or low-contact-resistance requirements exist for the application environment.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of pin headers from Fischer Elektronik. The series offers various pole counts and dimensions while maintaining consistent pitch and structural characteristics. The SL 11 164 31 Z represents a specific configuration within this family, distinguished by its 31-contact count and associated physical dimensions defined by the manufacturer's technical drawings.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, 31 positions, single-row layout, and through-hole mounting style. Verify that alternative manufacturers offer compatible contact lengths and insulation heights to ensure proper mechanical fit. Ensure mating connectors are compatible with the specified contact shape and plating type to maintain reliable electrical connections.
