SL 11 164 32 G

Headers, Male Pins Overview

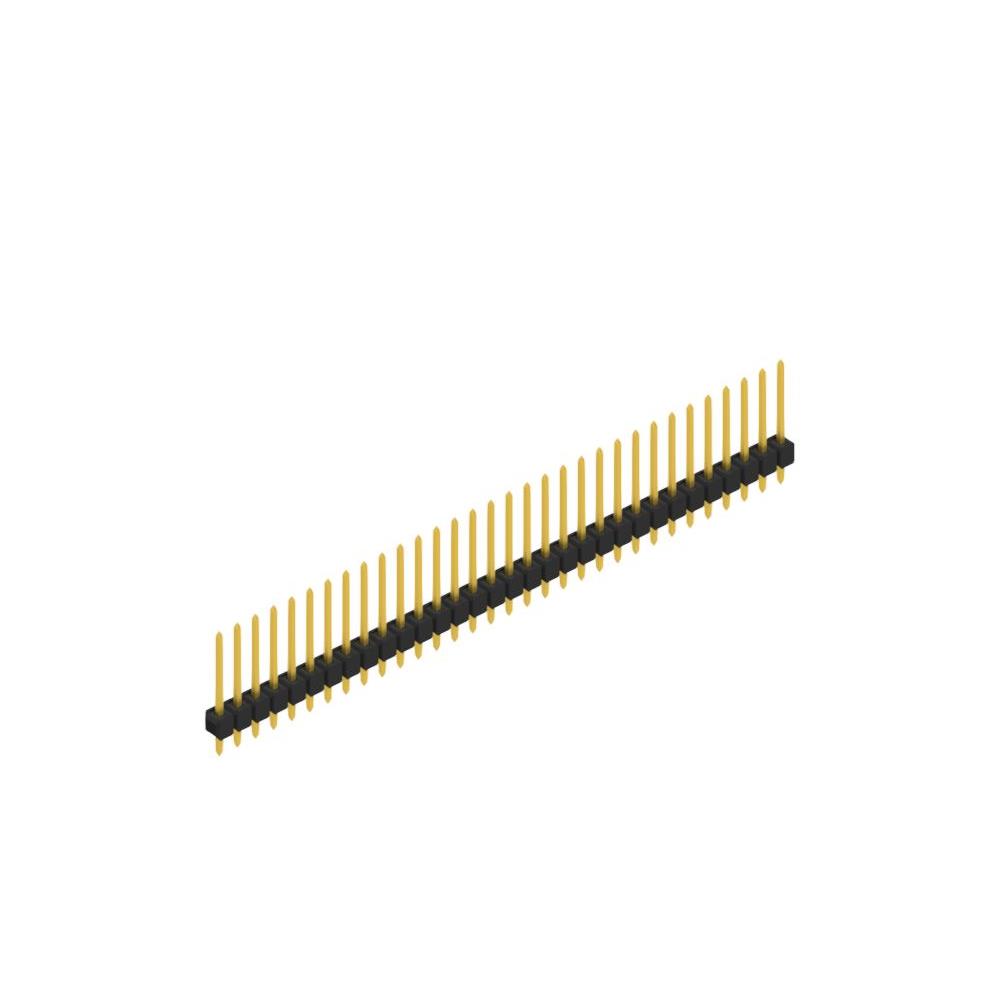

The SL 11 164 32 G is a single-row male pin header manufactured by Fischer Elektronik. It features 32 positions with a 0.100 inch (2.54 mm) pitch and gold-plated contacts. Designed for through-hole mounting, the connector utilizes copper-tin contact material and polyamide insulation rated for operation between -40°C and 163°C. The component provides reliable electrical interconnection in compact PCB layouts.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or cable connections
• Gold-plated contact finish to ensure corrosion resistance and stable signal transmission
• Polyamide insulation material providing thermal stability up to 163°C

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Industrial control panel wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' corresponds to the required gold plating specification. Confirm that the 32-position count matches the design requirements. Ensure the through-hole footprint aligns with the PCB layout. Check operating temperature ratings against environmental conditions.

Headers, Male Pins Selection Notes

Select this component when a single-row, high-temperature male header is required. The gold finish suits applications demanding long-term reliability. Verify that the 2.54 mm pitch fits the existing board spacing constraints. Consider the 163°C thermal rating for soldering processes.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of pin headers. The series offers various pole counts and contact finishes. The SL 11 164 variant specifically denotes the single-row geometry. Gold plating distinguishes it from tin-plated alternatives.

Headers, Male Pins Replacement Considerations

Cross-reference other SL 11 164 models with different contact finishes if gold is not strictly necessary. Verify compatibility with mating sockets from other manufacturers. Ensure mechanical dimensions match the original design.
