SL 11 164 32 S

Headers, Male Pins Overview

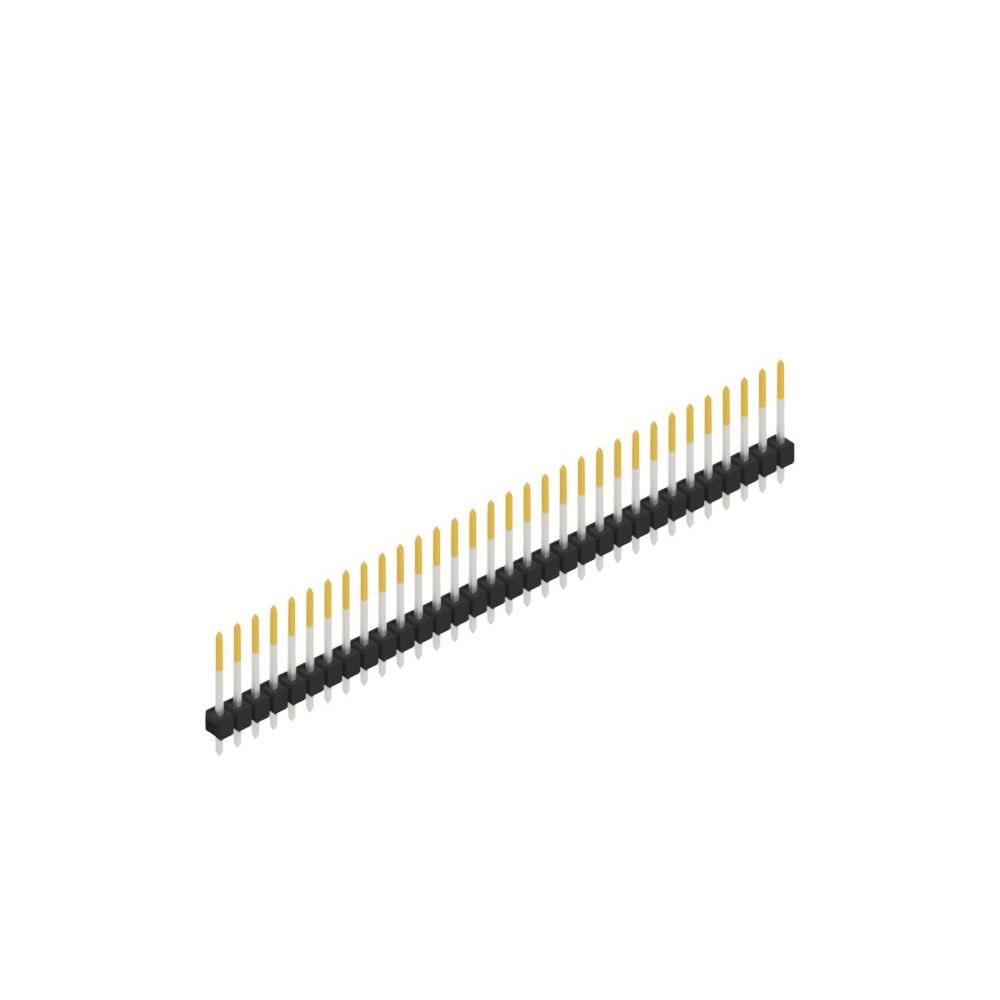

The SL 11 164 32 S is a single-row male pin header manufactured by Fischer Elektronik. It features 32 positions with a 0.100 inch (2.54 mm) pitch, designed for through-hole PCB mounting. The connector utilizes square pins made of copper-tin alloy, plated with tin on both the mating and column sections. The mating contact length measures 0.213 inches (5.40 mm), while the column contact length is 0.118 inches (3.00 mm). The total contact length is 0.441 inches (11.20 mm). Insulation height is 0.110 inches (2.80 mm), constructed from polyamide (PA46).

Headers, Male Pins Feature Summary

• Single-row design for compact board integration
• Through-hole termination method for secure PCB attachment
• Tin-plated copper-tin contacts for corrosion resistance
• Polyamide insulation material for thermal stability

Headers, Male Pins Applications

• General-purpose electronic device interconnects
• Industrial control panel wiring
• Consumer electronics assembly
• Test and measurement equipment connections

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against the official Fischer Elektronik datasheet to confirm tin plating specifications and exact dimensional tolerances. Ensure the ordering part number matches the required 32-position count and single-row configuration. Cross-reference the PA46 insulation rating with your application's thermal requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required for through-hole applications. Consider the 0.110 inch insulation height and 0.441 inch total contact length for clearance constraints. Verify that the tin-plated copper-tin contact material meets the environmental and conductivity needs of the target circuit interface.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of precision-engineered male pin headers from Fischer Elektronik. The series offers various pole counts and row configurations, all maintaining a standard 2.54 mm pitch. The SL 11 164 32 S specifically provides a 32-position solution within this standardized family, ensuring compatibility with other connectors in the same pitch ecosystem.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 32-position count, 2.54 mm pitch, single-row layout, and through-hole termination. Verify that alternative manufacturers offer identical pin dimensions and tin-plated contacts to ensure mechanical and electrical interchangeability without redesigning the PCB footprint.

Headers, Male Pins FAQ

What is the contact material used in the SL 11 164 32 S?

The contacts are made from a copper-tin alloy.

Does this connector support surface-mount technology?

No, the SL 11 164 32 S is designed exclusively for through-hole PCB mounting.
