SL 11 164 32 Z

Headers, Male Pins Overview

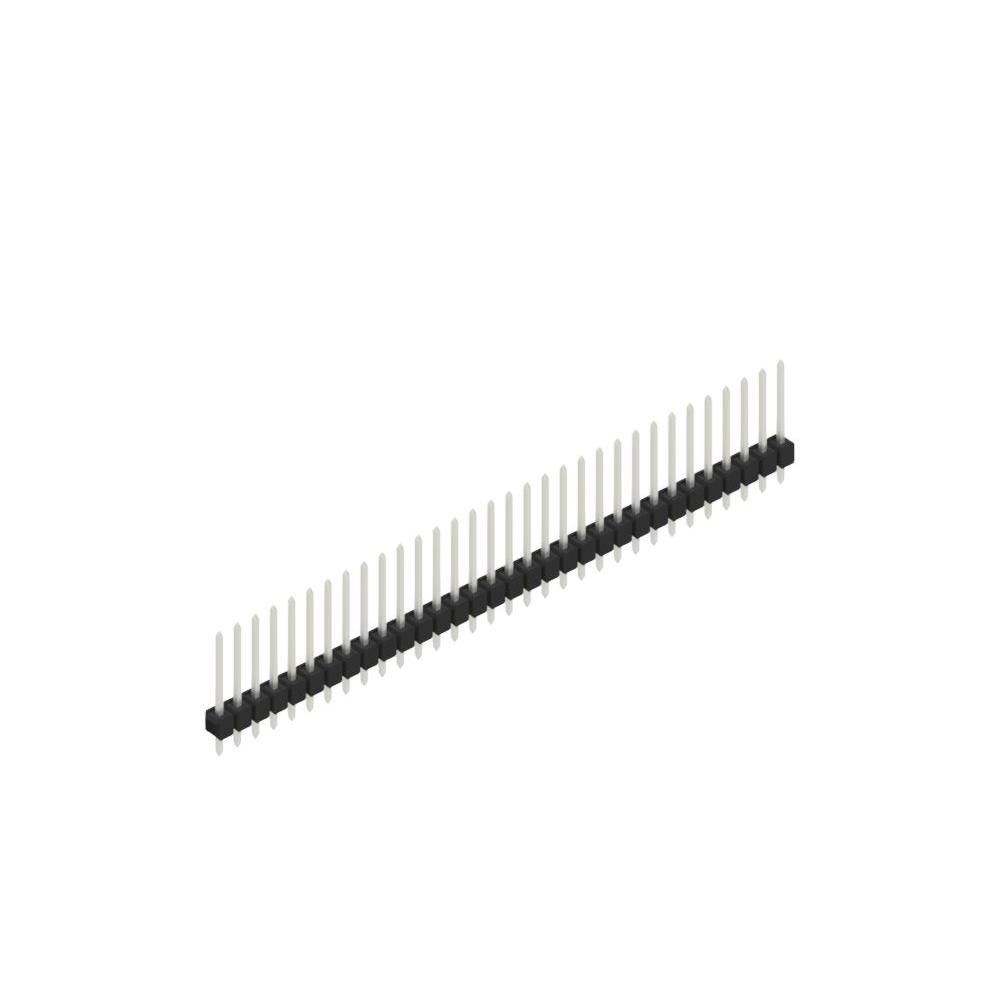

The SL 11 164 32 Z is a single-row male pin header manufactured by Fischer Elektronik. It features 32 positions with a 0.100 inch (2.54 mm) pitch spacing. The connector utilizes through-hole termination for PCB mounting. Contact materials consist of copper tin, with a tin plating finish on both the post and mating surfaces. The insulation material is polyamide (PA46), specifically nylon glass-filled, providing structural stability. Key dimensions include an overall contact length of 0.441 inches (11.20 mm), a mating contact length of 0.213 inches (5.40 mm), and a post contact length of 0.118 inches (3.00 mm). The insulation height measures 0.110 inches (2.80 mm).

Headers, Male Pins Feature Summary

• Single-row male pin header design for reliable electrical connectivity.
• Through-hole mounting configuration suitable for standard PCB assembly processes.
• Tin-plated copper tin contacts ensure corrosion resistance and stable signal transmission.
• Glass-filled polyamide insulation provides mechanical strength and thermal stability.

Headers, Male Pins Applications

• General electronic equipment interconnections
• Industrial control system wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 164 32 Z against official Fischer Elektronik documentation to confirm contact count and series alignment. Ensure compatibility with mating connectors regarding pitch and housing dimensions. Check for any specific handling requirements related to the through-hole pins during assembly. Confirm that the tin plating thickness meets application standards for intended environmental conditions.

Headers, Male Pins Selection Notes

Select this component when a single-row, 32-position male header is required for through-hole PCB integration. The 2.54 mm pitch ensures compatibility with standard ribbon cables or wire-to-board systems. Consider the glass-filled PA46 insulation if higher mechanical rigidity or thermal resistance is needed compared to standard nylon variants. Verify that the 0.110 inch insulation height fits within the available vertical clearance of the target enclosure or assembly.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of pin headers from Fischer Elektronik. The series is characterized by precision-engineered connectors designed for compact and reliable connectivity. The SL 11 164 variant specifically denotes the single-row configuration with defined contact counts. These headers are part of a broader range of rectangular connectors used in various industrial and commercial electronic applications requiring robust mechanical and electrical performance.
