SL 11 164 33 G

Headers, Male Pins Overview

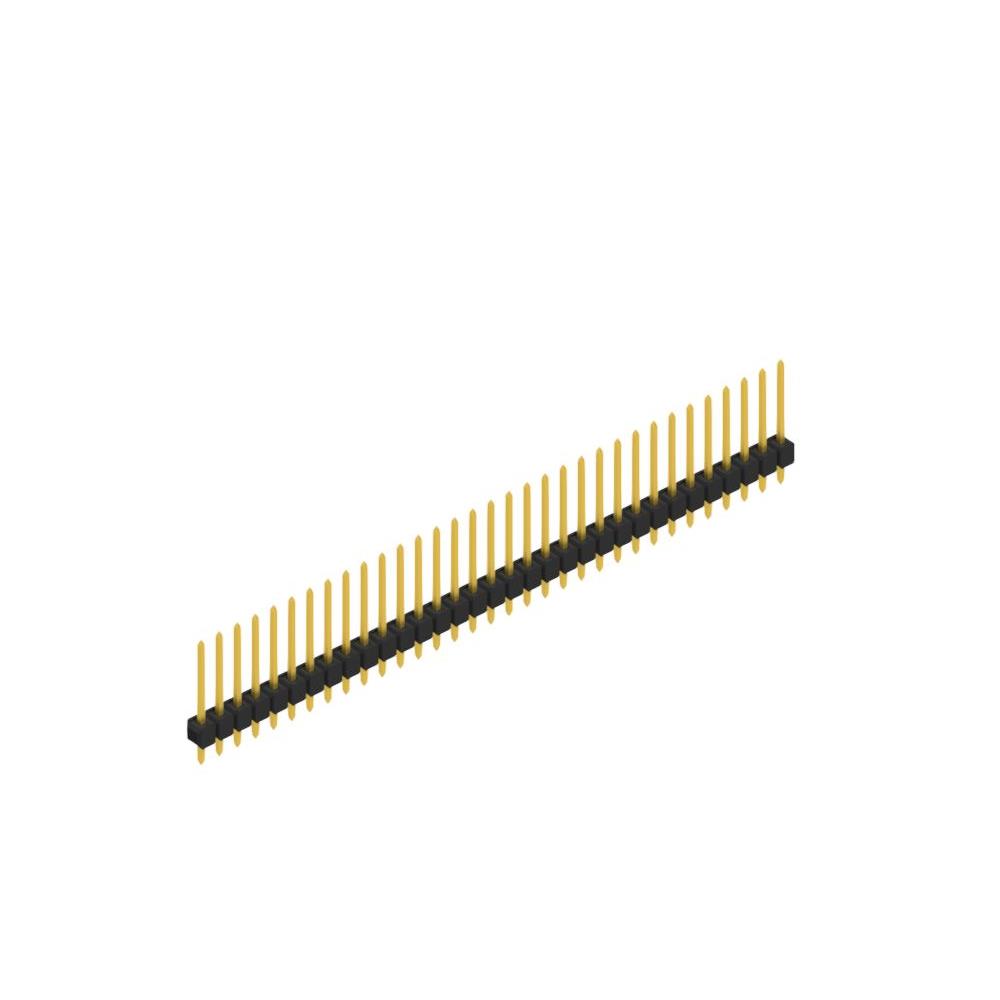

The SL 11 164 33 G is a single-row male pin header manufactured by Fischer Elektronik. It features 33 positions with a 2.54 mm (0.100 inch) pitch. The connector utilizes through-hole termination for PCB mounting. Contact surfaces are tin-plated, providing a contact length of 5.40 mm and a column length of 3.00 mm. The total contact length measures 11.20 mm. Insulation is constructed from polyamide (PA46), and the housing color is black.

Headers, Male Pins Feature Summary

• Single-row configuration for standard board-to-board or wire-to-board interconnection
• Tin-plated contacts ensure reliable conductivity and corrosion resistance
• Polyamide insulation material provides structural stability and thermal endurance

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Prototype development and testing setups
• Consumer electronics assembly requiring standard pin headers

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm plating type and mechanical dimensions. Ensure the selected variant matches the required contact length and insulation height for the target PCB stack-up. Confirm RoHS compliance status if restricted substances are mandated for the application environment.

Headers, Male Pins Selection Notes

Select this component when a single-row, 33-position male header with 2.54 mm pitch is required. The tin-plated finish suits general applications where gold plating is unnecessary. Verify that the 11.20 mm total height accommodates the available vertical clearance on the target assembly without interference.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male pin headers from Fischer Elektronik. The series offers various position counts and row configurations. The SL 11 164 33 G specifically denotes a 33-contact variant within this standardized lineup of through-hole connectors.

Headers, Male Pins Replacement Considerations

Compatible substitutes include SL 11 164 33 S and SL 11 164 33 Z, which share identical mechanical dimensions and pitch but differ in contact surface treatment.
