SL 11 164 33 S

Headers, Male Pins Overview

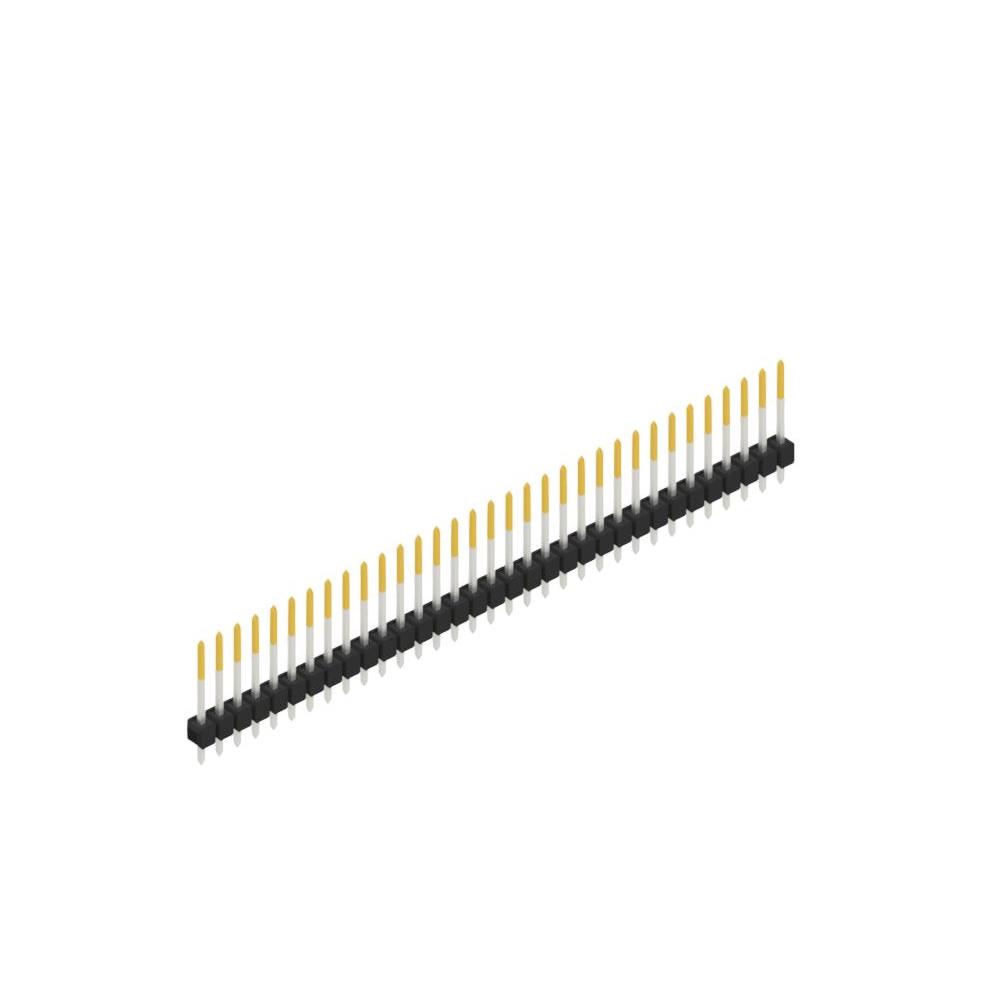

The SL 11 164 33 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 33 contacts arranged in one row. The connector utilizes through-hole mounting for secure PCB attachment. Contact materials consist of copper tin with a tin plating finish on both the post and mating surfaces. The insulation material is polyamide (PA46), specifically glass-filled nylon, providing structural stability. The design includes square-shaped pins with a contact length of 0.213 inches (5.40 mm) for mating and 0.118 inches (3.00 mm) for the post.

Headers, Male Pins Feature Summary

• Single-row configuration with square pin cross-sections designed for reliable board-to-board or wire-to-board connections.
• Glass-filled polyamide insulation material ensures mechanical robustness and thermal stability during operation.
• Through-hole mounting style provides secure physical attachment to printed circuit boards.
• Tin-plated copper tin contacts offer consistent conductivity and corrosion resistance.

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring standardized 2.54 mm spacing
• Board-to-board interconnection systems
• Wire-to-board connection interfaces

Headers, Male Pins Procurement Notes

Verify that the specific suffix 'S' corresponds to the required tin plating specification as defined in the official Fischer Elektronik datasheet. Confirm that the glass-filled PA46 insulation rating meets the thermal requirements of the target application environment. Ensure the through-hole footprint matches the manufacturing layout specifications precisely.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 2.54 mm pitch is required for applications needing 33 positions. The glass-filled polyamide insulation is suitable for environments demanding higher mechanical strength compared to standard nylon variants. Consider the square pin geometry for alignment precision in dense assembly layouts.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male pin headers from Fischer Elektronik. The series is characterized by customizable dimensions and a modular design approach. The SL 11 164 33 S represents a specific configuration within this family, defined by its 33-contact count and 2.54 mm pitch, distinguishing it from other variants with different contact counts or insulation materials.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, 33-position count, single-row male pin format, and through-hole mounting style. Verify compatibility of the glass-filled PA46 insulation material and tin plating finish to ensure equivalent electrical and mechanical performance in the final assembly.
