SL 11 164 33 Z

Headers, Male Pins Overview

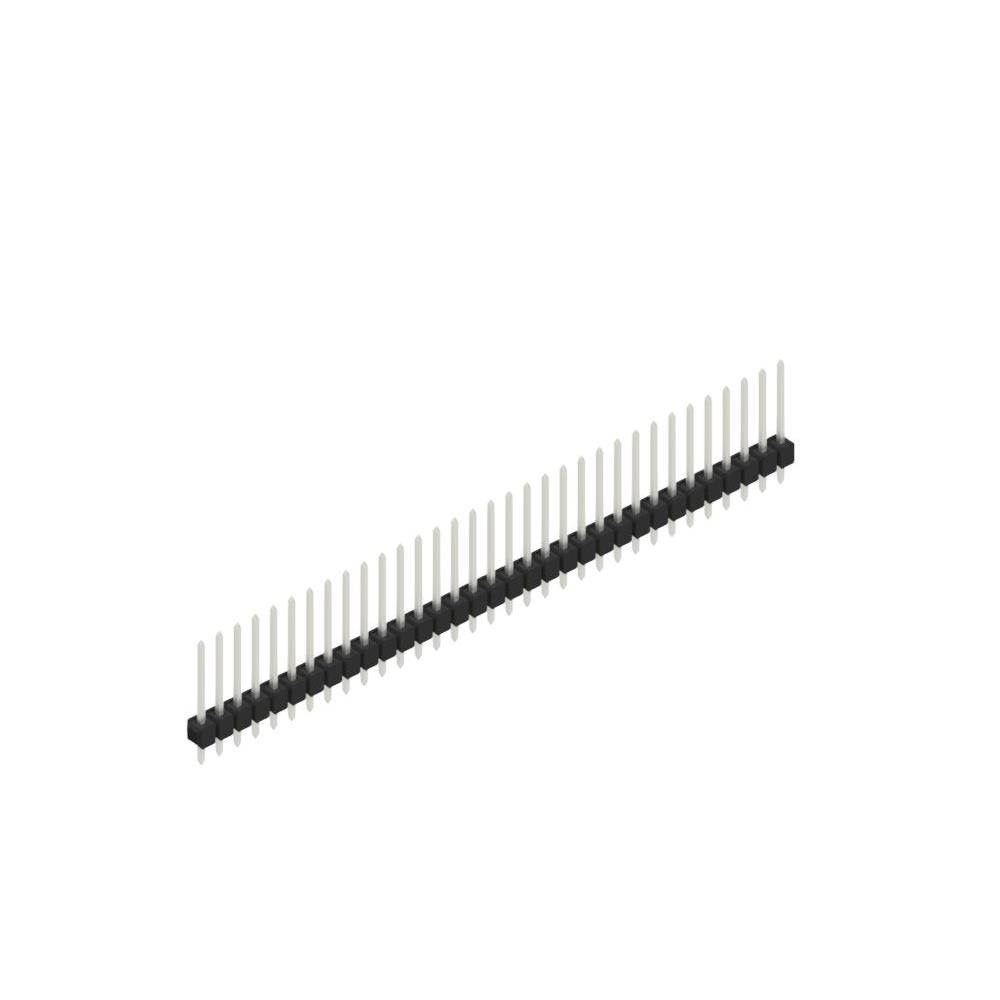

The SL 11 164 33 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 33 positions designed for through-hole mounting on printed circuit boards. The connector utilizes square-shaped pins with tin plating to ensure reliable electrical contact. Rated for 250VAC and 3A, it operates within a temperature range of -40°C to +163°C. The housing is constructed from polyamide (PA46), nylon 4/6, glass-filled material, which provides UL94 V-0 flammability rating for enhanced safety in electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row configuration with 33 male pins for board-to-board or wire-to-board connections
• Through-hole mounting design ensuring secure mechanical attachment to PCBs
• Tin-plated contacts providing corrosion resistance and stable conductivity
• Polyamide insulation material offering high thermal stability and flame retardancy

Headers, Male Pins Applications

• General-purpose electronic equipment interconnections
• Industrial control system signal routing
• Consumer electronics assembly
• Communication device hardware integration

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's official datasheet to confirm exact plating thickness and material composition variations. Ensure compatibility with mating connectors regarding insertion depth and contact geometry. Cross-reference the UL94 V-0 rating requirements with your assembly's safety standards before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a single-row, 33-position header is required for through-hole applications. Consider the 2.54 mm pitch standard for broad mating availability. Evaluate the operating temperature range and current rating against the specific circuit load requirements. Confirm that the straight pin orientation fits the spatial constraints of the target enclosure design.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of pin headers from Fischer Elektronik. The series offers various pole counts and row configurations to suit different connectivity needs. The SL 11 series is characterized by its robust construction and standardized dimensions, making it suitable for a wide range of industrial and commercial electronic applications requiring reliable signal transmission.

Headers, Male Pins Replacement Considerations

Compatible substitutes include SL 11 164 33 S and SL 11 164 30 Z from the same manufacturer. Verify that alternative parts match the 33-position count and 2.54 mm pitch. Check if differences in plating materials or insulation properties affect the specific application environment.
