SL 11 164 34 G

Headers, Male Pins Overview

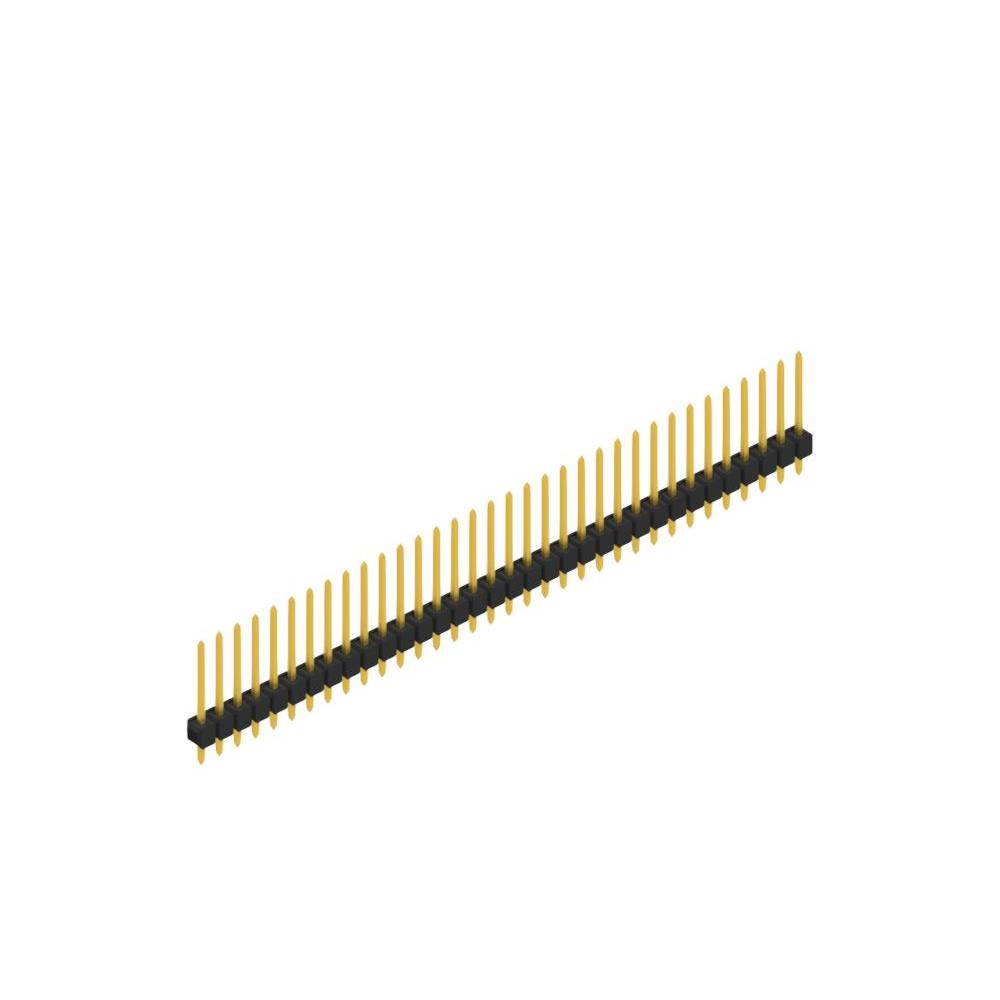

The SL 11 164 34 G is a male pin header connector from Fischer Elektronik, designed for through-hole mounting. It features a single row with 34 positions and a 0.100 inch (2.54 mm) pitch. The contacts are constructed from copper tin alloy with gold plating to ensure reliable conductivity. Key dimensions include a mating length of 3.00 mm and an overall contact length of 11.20 mm. The insulating material is PA 4.6 GF, rated UL 94 V-0, providing electrical insulation strength of 2000 V AC and a dielectric resistance greater than 107 Ω·m.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for compact board connectivity
• Gold-plated copper tin alloy contacts for corrosion resistance
• PA 4.6 GF insulator with UL 94 V-0 flame rating

Headers, Male Pins Applications

• General electronic interconnects requiring through-hole termination
• Stacked PCB assemblies utilizing compatible female headers
• Industrial control modules needing reliable signal transmission

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' confirms gold plating on the contacts as distinct from other finish options in the series. Confirm the 34-position count matches the design requirement. Ensure the through-hole footprint aligns with the specified 2.54 mm pitch. Check that the insulator material specifications meet the thermal and flammability requirements of the target application environment.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with gold contacts is required for through-hole assembly. The 34-position count suits applications needing moderate I/O density. The 2.54 mm pitch ensures compatibility with standard ribbon cables or mating connectors. Consider the UL 94 V-0 rating if fire safety standards are critical for the enclosure.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered electronic components by Fischer Elektronik. The series offers various position counts and lengths while maintaining consistent 2.54 mm spacing. The SL 11 164 variant specifically denotes the height and contact length characteristics within the product family.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with matching 34 positions and gold finishes. Verify that any alternative maintains the same 2.54 mm pitch and through-hole mounting style to ensure mechanical fit.
