SL 11 164 34 S

Headers, Male Pins Overview

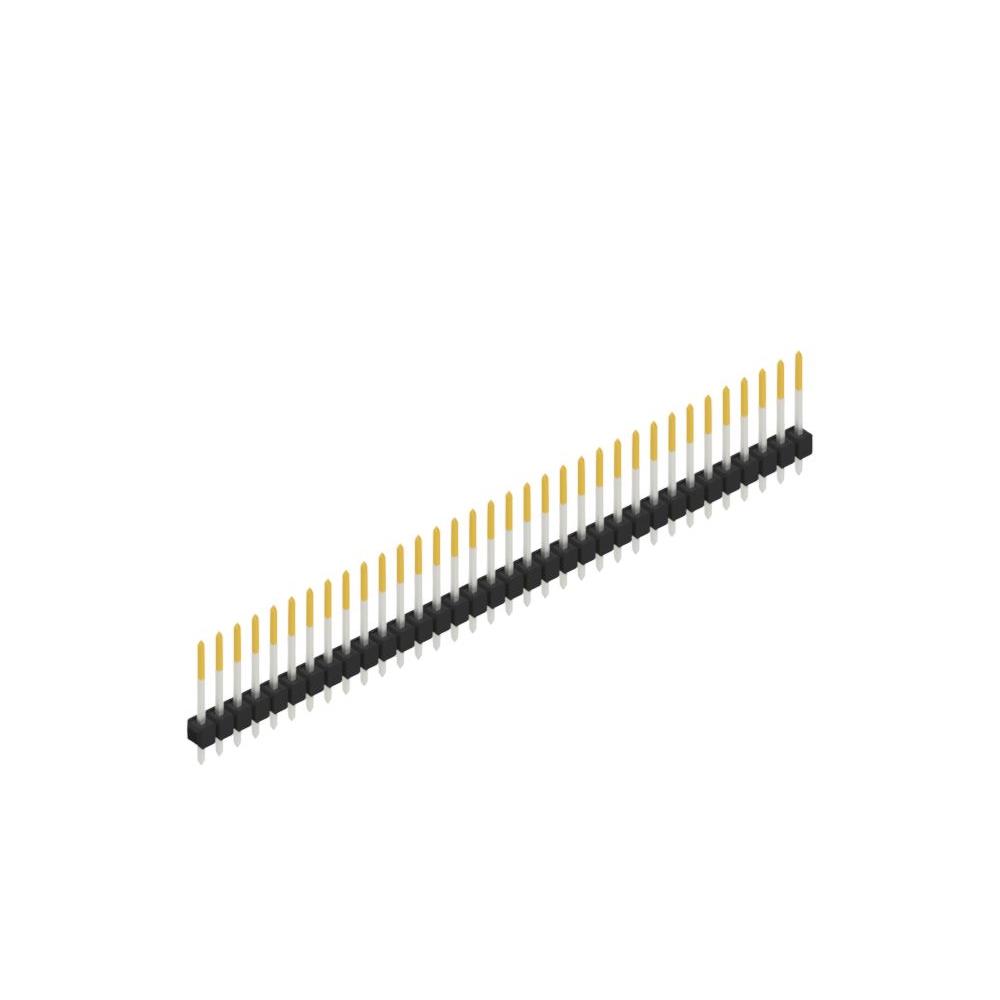

The SL 11 164 34 S is a male header connector from the Fischer Elektronik SL 11 series. It features a single row with 34 contacts and a 0.635 mm (0.025 inch) pitch. The connector utilizes surface mount technology for PCB attachment. Contact materials are copper alloy with gold plating on the mating surfaces to ensure reliable conductivity. The housing is constructed from polyamide, rated UL 94 V-0 for flammability. It operates within a temperature range of -40°C to +105°C.

Headers, Male Pins Feature Summary

• Precision 0.635 mm pitch design for compact circuit board layouts
• Gold-plated contact surfaces for enhanced signal integrity and corrosion resistance
• Surface mount assembly method for automated production efficiency
• Polyamide insulation housing with UL 94 V-0 flame retardancy rating

Headers, Male Pins Applications

• High-density electronic assemblies requiring small form factors
• Signal transmission in consumer electronics devices
• Industrial control board interconnections
• Communication equipment internal connectivity

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' confirms surface mount orientation and pin configuration against the official datasheet. Confirm that the 34-position count matches the required circuit design. Ensure compatibility with standard reflow soldering profiles specified by the manufacturer. Check for RoHS compliance status if required by project regulations. Validate that the 0.635 mm pitch aligns with the corresponding socket or cable assembly specifications.

Headers, Male Pins Selection Notes

Select this component when space constraints necessitate a fine-pitch 0.635 mm connection rather than standard 2.54 mm headers. Consider the surface mount requirement for manufacturing processes. Evaluate the current carrying capacity relative to the application's electrical load. Assess the mechanical stability provided by the single-row design versus multi-row alternatives. Ensure the operating temperature range meets the environmental conditions of the final product.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision connectors designed for high-reliability applications. The series offers various contact counts and mounting styles. The SL 11 164 34 S specifically addresses needs for dense, low-profile connections. Fischer Elektronik manufactures these components to meet strict dimensional tolerances. The series is widely used in industries demanding robust electronic interconnects.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SL 11 series headers with identical 0.635 mm pitch and surface mount characteristics. Verify contact count and row configuration match exactly. Cross-reference with generic 0.635 mm SMD male headers only if mechanical dimensions and electrical ratings are fully compatible. Ensure alternative parts maintain the same UL 94 V-0 insulation rating.
