SL 11 164 34 Z

Headers, Male Pins Overview

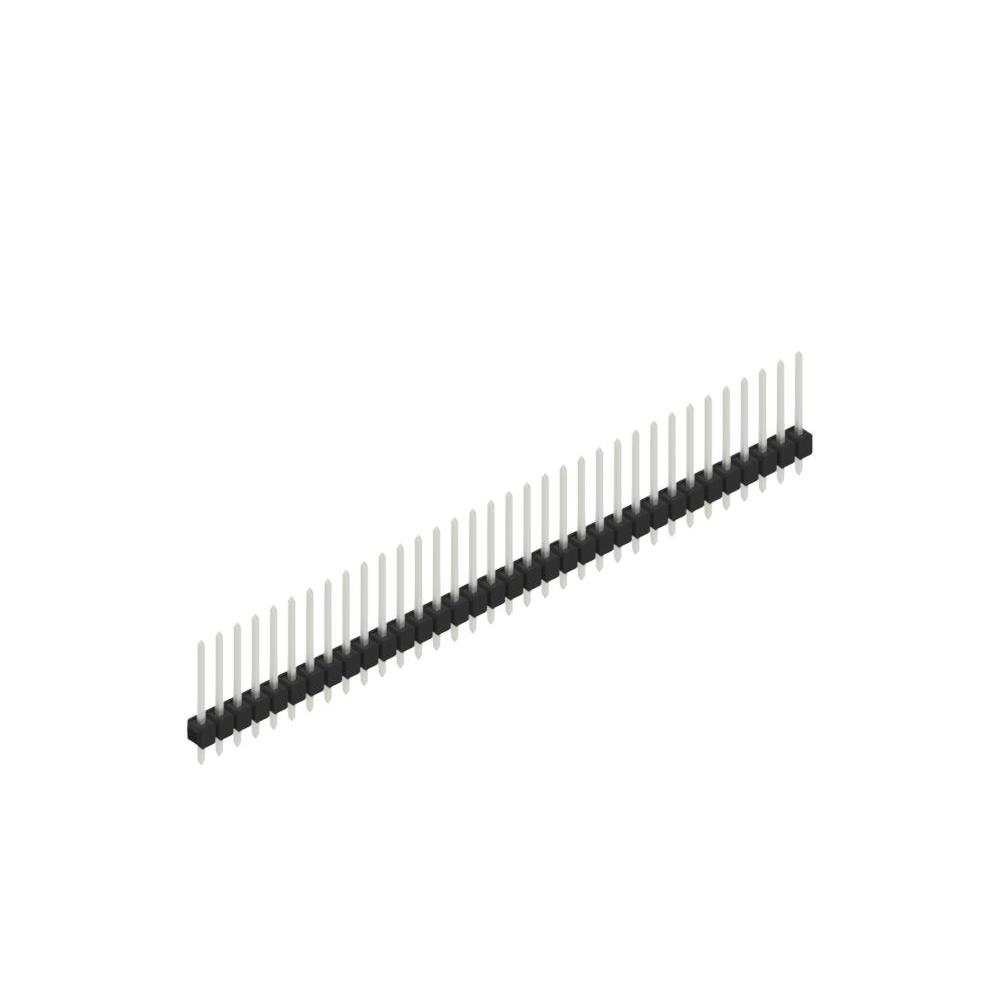

The SL 11 164 34 Z is a single-row male header connector from Fischer Elektronik, designed for through-hole mounting. It features 34 positions with a 0.100 inch (2.54 mm) pitch. The contacts are constructed from copper-tin alloy and finished with tin plating. The insulating body is made of PA 4.6 glass fiber reinforced material. Key dimensions include a contact length of 0.213 inches (5.40 mm) for mating and 0.118 inches (3.00 mm) for the column, with an overall contact length of 0.441 inches (11.20 mm).

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment.
• Single-row layout with 34 male pin positions.
• Tin-plated copper-tin contacts for reliable conductivity.
• PA 4.6 glass fiber reinforced insulating body.

Headers, Male Pins Applications

• General electronic interconnects
• Industrial control systems
• Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 164 34 Z against official Fischer Elektronik documentation to ensure compatibility with your design requirements. Confirm that the through-hole termination style and 2.54 mm pitch align with your PCB footprint specifications. Check for any recent updates to the datasheet regarding material certifications or environmental compliance standards before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 34-position male header is required for through-hole applications. Ensure the 2.54 mm pitch matches the mating connector or cable assembly. Consider the PA 4.6 insulation material for thermal stability and the tin-plated contacts for general-purpose connectivity needs. Verify that the straight orientation fits within the mechanical constraints of the enclosure.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of rectangular connectors from Fischer Elektronik. The series offers various position counts and row configurations. The SL 11 164 34 Z specifically denotes a 34-position variant in the 164 dimension family. It is distinct from other series like SL 4 or SL LP, which may have different pitch options or contact materials.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 34-position count, 2.54 mm pitch, single-row male pin type, and through-hole termination. Verify that alternative manufacturers offer identical housing material (PA 4.6 GF) and contact plating (tin) to maintain electrical and mechanical compatibility. Cross-reference with Fischer Elektronik's official replacement guide if available.
