SL 11 164 35 G

Headers, Male Pins Overview

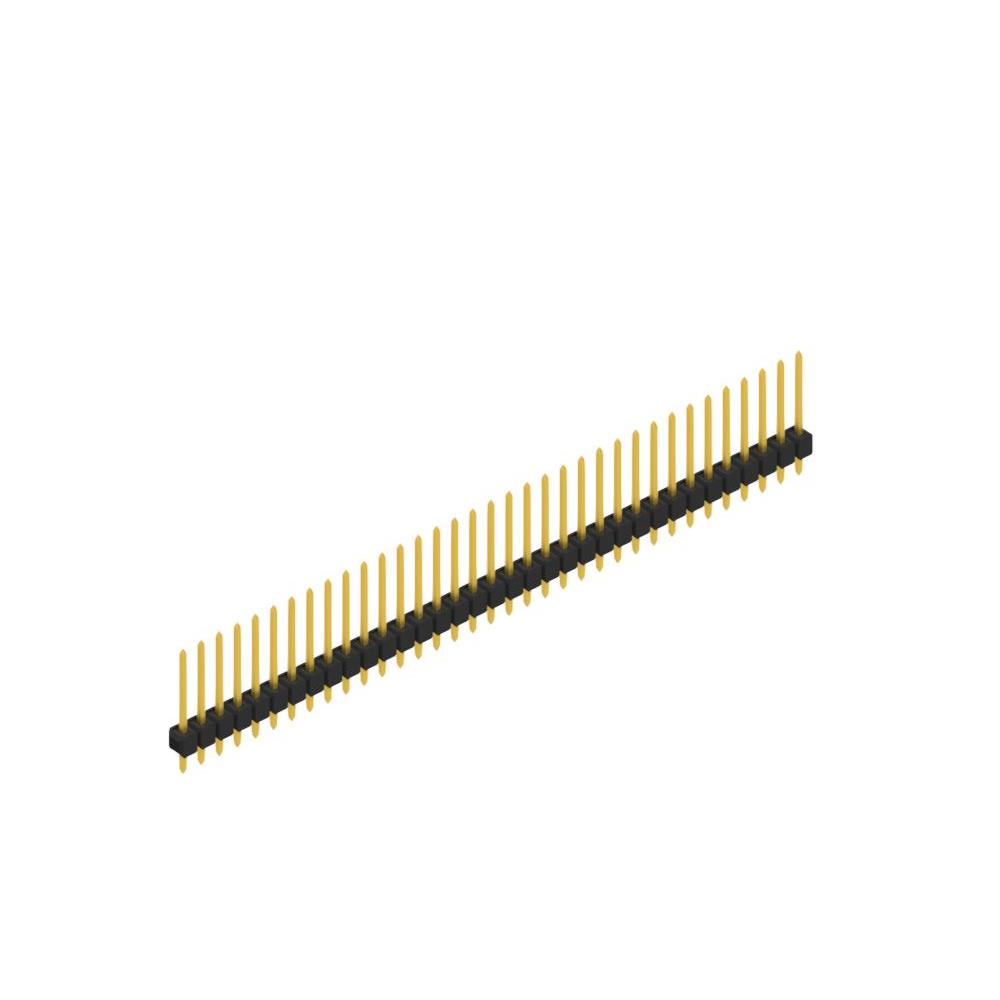

The SL 11 164 35 G is a single-row male pin header manufactured by Fischer Elektronik. It features 35 positions with a 0.100 inch (2.54 mm) pitch. Designed for through-hole mounting, the connector utilizes square contact shapes and a polyamide (PA46) insulator. The contacts are tin-plated copper alloy, providing a mating contact length of 0.213 inches (5.40 mm) and a post length of 0.118 inches (3.00 mm). The total contact length measures 0.441 inches (11.20 mm), with an insulation height of 0.110 inches (2.80 mm).

Headers, Male Pins Feature Summary

• Single-row configuration with 35 positions for standard board-to-board interconnection.
• Through-hole termination method ensuring secure PCB attachment.
• Tin-plated copper alloy contacts for reliable conductivity.
• Polyamide (PA46) insulation material for structural stability.

Headers, Male Pins Applications

• General electronic circuit board interconnections
• Industrial control system wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'G' against the manufacturer's official datasheet to confirm plating specifications and material composition. Ensure the required 35-position count matches the design layout. Confirm that the through-hole footprint aligns with the specified 2.54 mm pitch dimensions before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 35-pin male header is required for through-hole applications. The 2.54 mm pitch is standard for many commercial electronics. Consider the tin plating for general use cases where gold plating is not strictly necessary for corrosion resistance or low-contact resistance requirements.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of rectangular connectors. The series offers various pole counts and row configurations. The SL 11 164 35 G specifically denotes a 35-position variant within this standardized line of male pin headers designed for robust electrical connections.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik headers with identical 35-position, single-row, 2.54 mm pitch specifications. Verify mechanical dimensions and plating type when sourcing alternatives from other manufacturers to ensure interchangeability.
