SL 11 164 35 S

Headers, Male Pins Overview

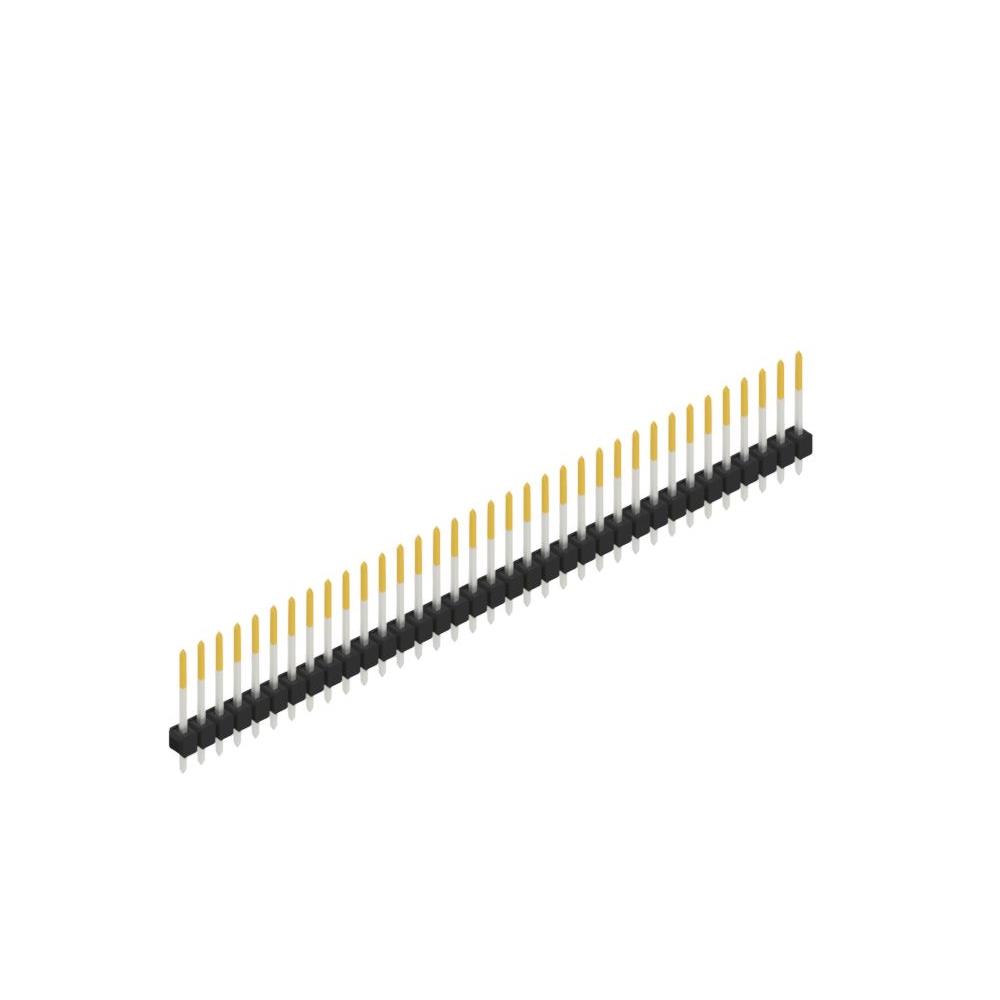

The SL 11 164 35 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features 35 positions with a 2.54 mm (0.100 inch) pitch. The contacts are tin-plated bronze, designed for through-hole mounting on printed circuit boards. The connector has a total contact length of 11.20 mm, with a mating length of 5.40 mm and a column length of 3.00 mm. The insulation height is 2.80 mm, and the housing material is polyamide (PA46).

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or cable connections.
• Through-hole termination method ensures secure mechanical attachment to PCBs.
• Tin-plated contacts provide reliable conductivity and corrosion resistance.
• Polyamide insulation offers thermal stability and electrical isolation.

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring signal interconnection.
• Industrial control panels utilizing standard 2.54 mm spacing.
• Consumer electronics manufacturing with through-hole component requirements.

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates tin plating as per official datasheets. Confirm that the 35-position count matches the required circuit design. Ensure the through-hole footprint aligns with the PCB layout specifications. Check for any RoHS compliance documentation if required by the end product regulations. Cross-reference the manufacturer part number to avoid confusion with similar series variants.

Headers, Male Pins Selection Notes

Select this component when a single-row, 35-pin male header is needed for through-hole assembly. The 2.54 mm pitch is standard for many legacy and modern connectors. Tin plating is suitable for general environments but may require consideration for high-wear mating cycles compared to gold options. Ensure the current rating and voltage limits meet the application's electrical demands.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of PCB connectors from Fischer Elektronik. The series includes various row counts, pin numbers, and plating options. The SL 11 164 35 S specifically denotes a 35-position variant within this family, distinguished by its tin-plated contacts and single-row design.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Users must verify compatibility with existing mating connectors based on pitch and contact geometry before substitution.
