SL 11 164 35 Z

Headers, Male Pins Overview

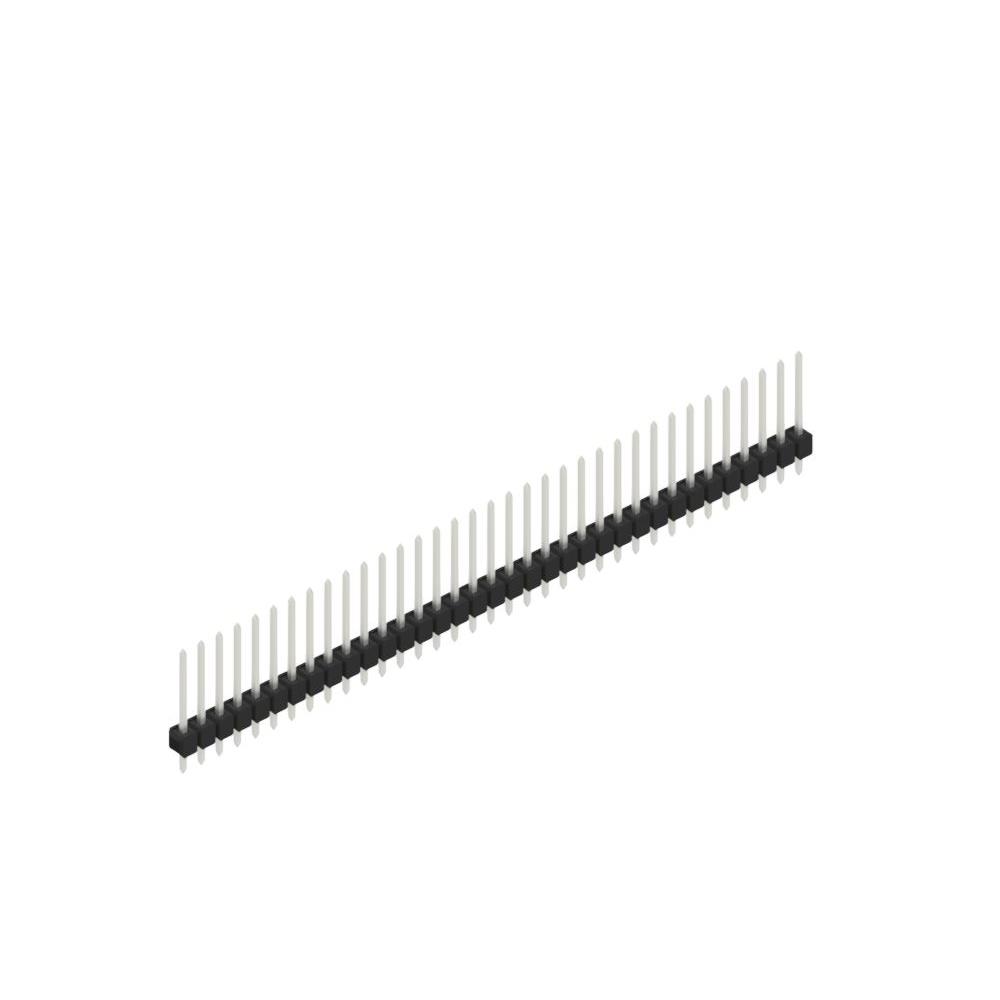

The SL 11 164 35 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features 35 positions with a 2.54 mm (0.100 inch) pitch. The contacts are made of copper-tin alloy with tin plating, designed for through-hole PCB mounting. Key dimensions include an insertion depth of 3.00 mm and a total contact length of approximately 11.20 mm. The insulator material is polyamide (PA46), providing thermal stability.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or cable connections
• Through-hole termination method ensuring secure mechanical attachment to printed circuit boards
• Tin-plated copper-tin alloy contacts for reliable electrical conductivity and corrosion resistance

Headers, Male Pins Applications

• General electronic equipment interconnects
• Industrial control system signal routing
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix 'Z' against the manufacturer's current datasheet to confirm exact plating thickness and material specifications. Ensure the required insertion depth matches the target PCB thickness. Confirm that the 2.54 mm pitch aligns with the mating connector footprint. Check for any RoHS compliance declarations in the official documentation prior to ordering.

Headers, Male Pins Selection Notes

Select this component when a single-row, 35-position male header is required for through-hole applications. The 2.54 mm pitch is standard for many legacy and general-purpose designs. Consider the PA46 insulation material for applications requiring moderate heat resistance. Verify that the contact geometry fits the available panel space and mating constraints.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of pin headers from Fischer Elektronik. The series offers various pole counts and row configurations. The SL 11 164 variant specifically denotes a single-row design with standardized spacing. This model provides a robust solution for connecting cables or daughterboards to main PCBs in compact assemblies.

Headers, Male Pins Replacement Considerations

Compatible substitutes must match the 2.54 mm pitch, 35 positions, single-row layout, and through-hole termination. Verify that alternative manufacturers offer identical contact materials and plating specifications. Ensure the housing height and insertion depth are compatible with the existing PCB design to maintain proper mating alignment.
