SL 11 164 36 G

Headers, Male Pins Overview

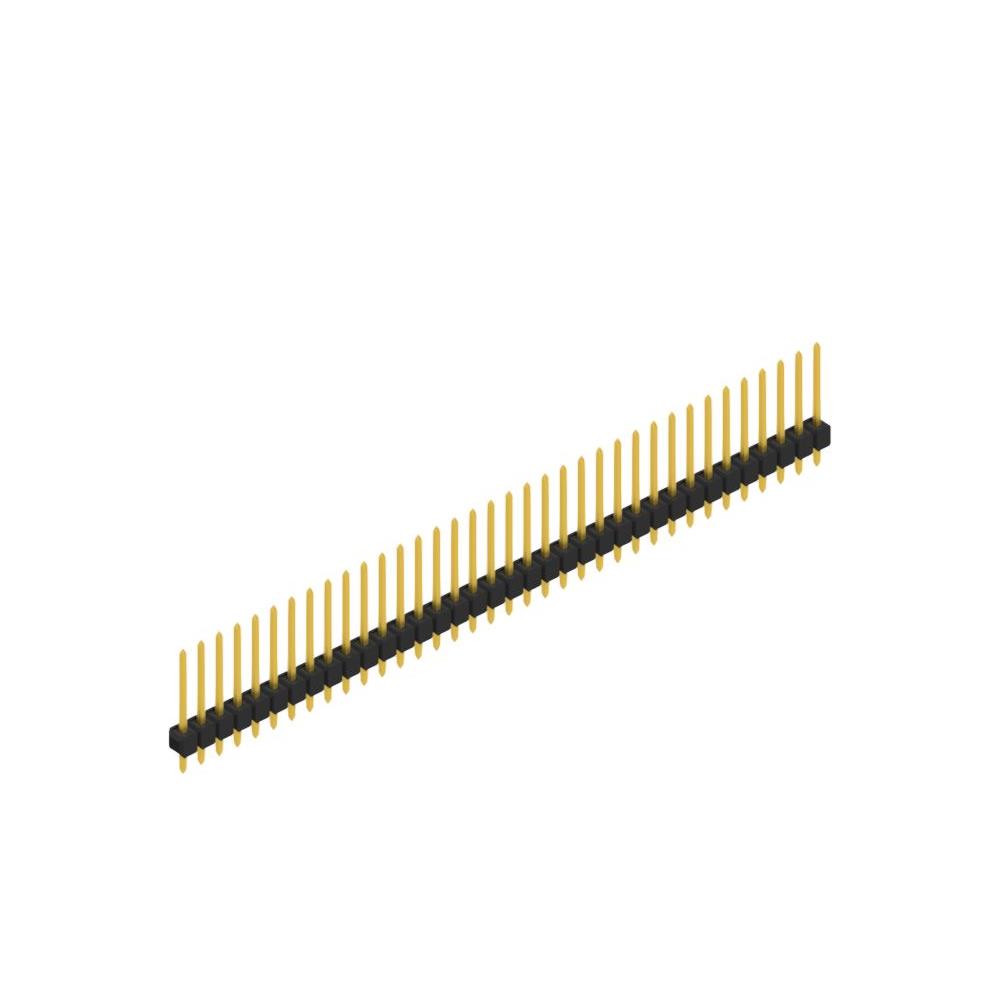

The SL 11 164 36 G is a single-row male header connector manufactured by Fischer Elektronik. It features 36 positions with a 2.54 mm (0.100 inch) pitch and square contact cross-sections of 0.635 mm. The contacts are tin-plated copper alloy, offering a mating contact length of 5.40 mm and a column length of 3.00 mm. Total contact length measures 11.20 mm, while the insulation height is 2.80 mm. Designed for through-hole mounting, this component is currently in active production status.

Headers, Male Pins Feature Summary

• Single-row male header configuration with square contact geometry
• Tin-plated copper alloy contacts for reliable conductivity
• Through-hole termination method for secure PCB attachment
• Polyamide (PA46) insulation material for thermal stability

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board connectivity solutions
• General electronic assembly requiring through-hole headers

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm plating type and contact count. Ensure the selected variant matches the required pin count and row configuration. Cross-reference the manufacturer datasheet for precise mechanical dimensions and thermal specifications before integration into the design.

Headers, Male Pins Selection Notes

Select this component when a single-row, 36-position header with 2.54 mm pitch is required. The tin-plated finish suits standard environmental conditions. Consider the through-hole mounting style and PA46 insulation properties for compatibility with the target PCB layout and operating temperature range.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered male headers from Fischer Elektronik. The series offers various contact counts and plating options, maintaining a consistent 2.54 mm grid spacing. These connectors are designed for compact and reliable connectivity in electronic assemblies requiring robust through-hole connections.

Headers, Male Pins Replacement Considerations

Direct substitutes include variants within the same SL 11 series with matching pitch and row count but different plating or contact numbers. Verify mechanical footprint and electrical ratings before swapping. No other manufacturers' parts are confirmed as direct replacements without additional testing.
