SL 11 164 36 S

Headers, Male Pins Overview

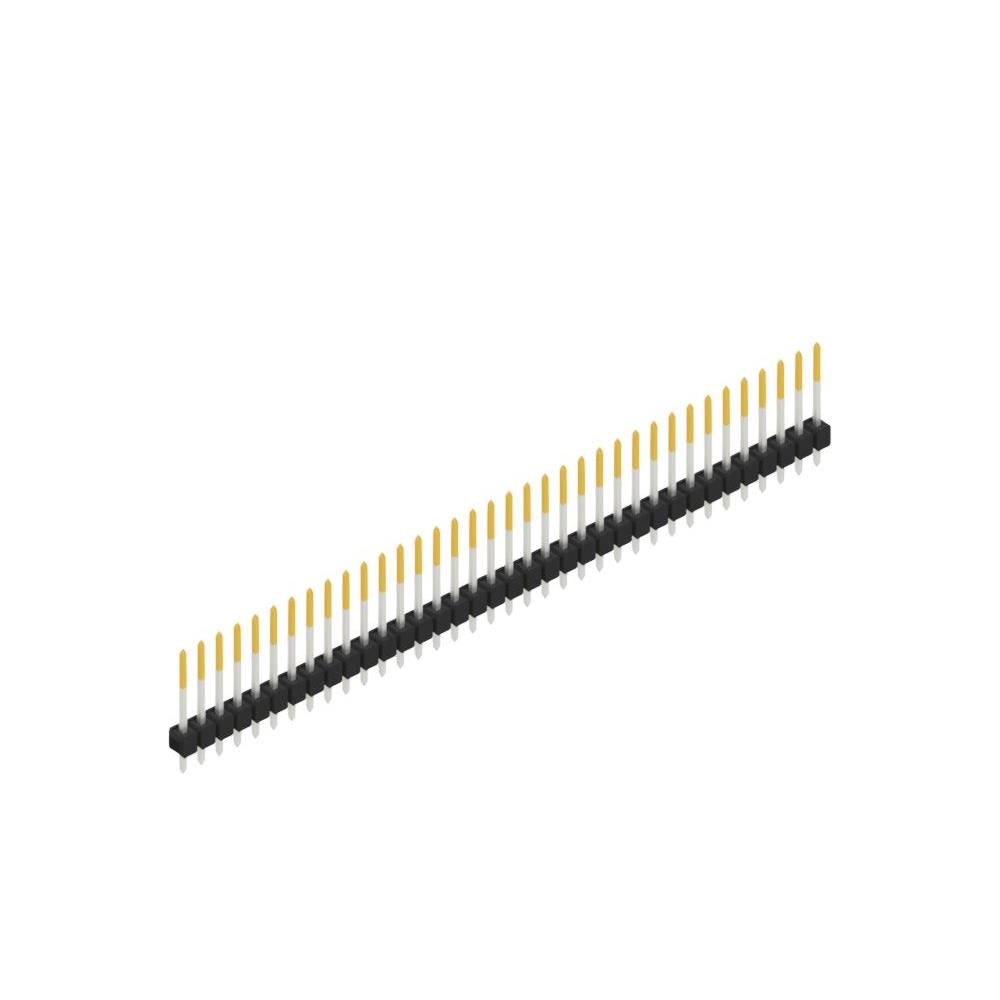

The SL 11 164 36 S is a single-row male header connector manufactured by Fischer Elektronik. It features 36 positions with a 0.100 inch (2.54 mm) pitch. The contacts are square pins made of copper-tin, plated with tin (4.00 µm thickness). Key dimensions include an insertion depth of 3.00 mm, an insulation height of 2.80 mm, and a total contact length of 11.20 mm. The mating contact length is 5.40 mm, while the column contact length is 3.00 mm. The housing is constructed from polyamide (PA46).

Headers, Male Pins Feature Summary

• Single-row male pin header design for through-hole PCB mounting.
• Square contact shape with tin plating for reliable electrical connection.
• Polyamide (PA46) insulation material providing structural stability.

Headers, Male Pins Applications

• General electronic interconnects requiring 2.54 mm spacing.
• Prototyping boards and development kits.
• Industrial control panel wiring.

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates the tin-plated variant as documented in official Fischer Elektronik datasheets. Confirm that the 36-position count aligns with your board layout requirements. Ensure compatibility with standard 2.54 mm female headers or ribbon cables. Check RoHS compliance status if required for your specific application regulations.

Headers, Male Pins Selection Notes

Select this component when a single-row, 36-pin male header is needed with a 2.54 mm pitch. The tin-plated contacts offer good solderability and corrosion resistance for general-purpose use. Consider the 3.00 mm insertion depth to ensure proper PCB hole alignment. Verify that the PA46 insulation material meets thermal requirements for your assembly process.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered electronic connectors. The series offers various pole counts and row configurations. The SL 11 164 36 S specifically provides a high-density option within the single-row category, suitable for applications requiring multiple signal lines in a compact footprint.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, 36 positions, single-row male configuration, and tin-plated square pins. Verify mechanical dimensions, particularly the 3.00 mm insertion depth and 2.80 mm insulation height, to ensure PCB compatibility. Cross-reference with other manufacturers offering similar through-hole male headers.
