SL 11 164 36 Z

Headers, Male Pins Overview

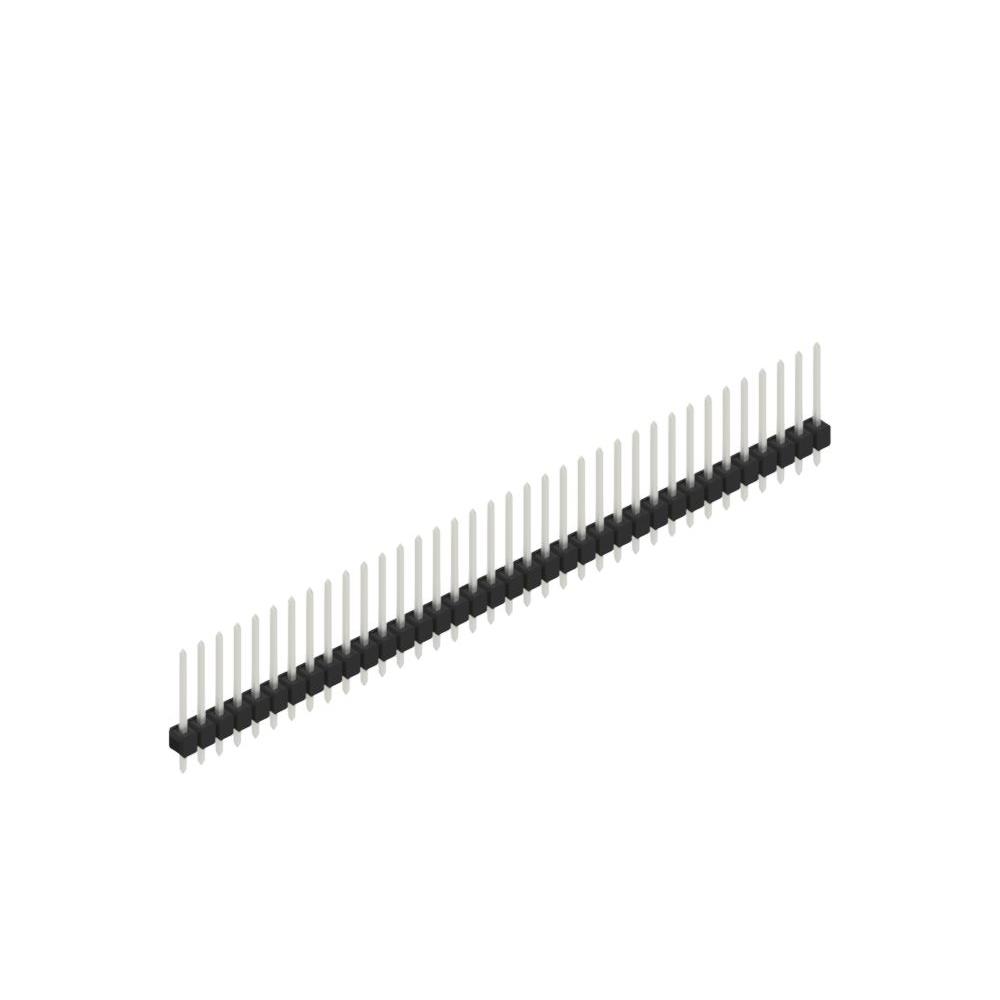

The SL 11 164 36 Z is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 36 positions and a 0.100 inch (2.54 mm) pitch. The contacts are square-shaped, tin-plated copper-tin alloy pins designed for through-hole mounting. Key dimensions include a total contact length of 0.441 inches (11.20 mm), a mating contact length of 0.213 inches (5.40 mm), and a column contact length of 0.118 inches (3.00 mm). The insulator height is 0.110 inches (2.80 mm), constructed from polyamide (PA46). The tin plating thickness on the mating surface is 157.5 µin (4.00 µm).

Headers, Male Pins Feature Summary

• Single-row male header design for reliable board-to-board or wire-to-board connectivity.
• Square contact shape ensures secure mechanical retention within mating sockets.
• Through-hole termination method provides robust mechanical stability on printed circuit boards.
• Tin-plated copper-tin contacts offer corrosion resistance and consistent electrical performance.

Headers, Male Pins Applications

• Industrial control panel interconnections
• Test and measurement equipment signal routing
• Consumer electronics assembly requiring high-density connections

Headers, Male Pins Procurement Notes

Verify the exact part number suffix to ensure correct contact configuration and insulation material compatibility. Confirm that the required current rating aligns with the specific application load, as datasheets may vary by region. Check for non-cancelable/non-returnable status if applicable to your procurement policy. Ensure PCB hole dimensions match the 0.635 mm contact cross-section for proper insertion.

Headers, Male Pins Selection Notes

Select this component when a single-row, 36-position male header with a 2.54 mm pitch is required. Consider the through-hole mounting style and PA46 insulation material for thermal stability. Evaluate the square contact shape against round-pin alternatives for mating socket compatibility. Verify that the 0.110 inch insulator height fits within the enclosure constraints of the target assembly.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of Fischer Elektronik headers, characterized by a 0.635 mm contact cross-section and 2.54 mm grid spacing. The series offers various contact counts, typically ranging from 1 to 36 positions. The SL 11 164 36 Z specifically denotes the 36-position variant in this one-row male header lineup, designed for general-purpose electronic interconnects.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik SL 11 series headers with identical 36-position, 2.54 mm pitch specifications. Cross-manufacturer replacements must match the square contact profile, through-hole termination, and PA46 insulation properties to ensure mechanical and electrical compatibility.

Headers, Male Pins FAQ

What is the contact material used in the SL 11 164 36 Z?

The contacts are made from copper-tin alloy with a tin plating finish.

Is the connector suitable for high-temperature environments?

The polyamide (PA46) insulation material provides good thermal stability, but specific temperature ratings should be verified against the official datasheet for the intended operating range.
