SL 11 164 4 G

Headers, Male Pins Overview

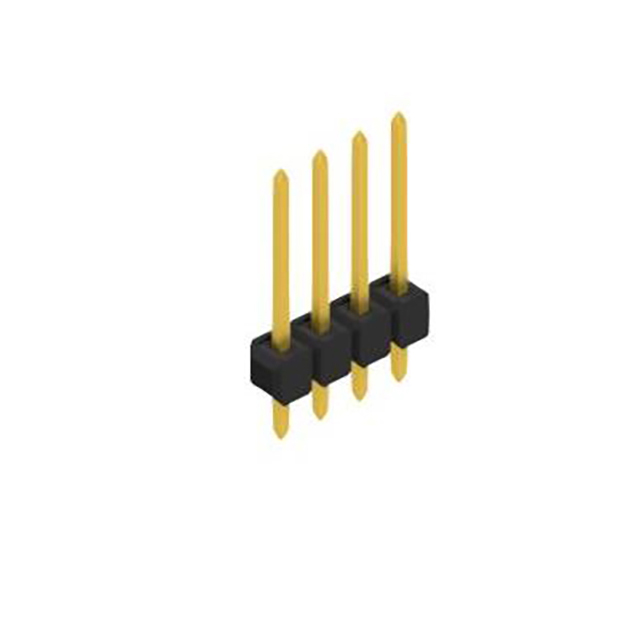

The SL 11 164 4 G is a male header connector from Fischer Elektronik, designed for through-hole PCB mounting. It features a single row with four positions and a 0.100" (2.54mm) pin spacing. The contacts are made of copper tin with gold plating on the mating surface (≥0.2µm Au) and nickel-tin plating on the tail (Ni+46µm Sn). The insulator is constructed from glass-fiber reinforced polyamide (PA46/nylon 4/6), providing an insulation height of 0.110" (2.80mm). The connector supports a mating contact length of 0.157" (4.00mm) and operates within a temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Gold-plated mating surfaces ensuring reliable electrical conductivity
• Glass-fiber reinforced polyamide insulation for thermal stability

Headers, Male Pins Applications

• General electronic circuit interconnections
• Industrial control system board-to-board connections
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' corresponds to the required gold plating thickness and material specifications as defined in the official Fischer Elektronik datasheet. Confirm that the single-row, four-position configuration matches the design requirements. Ensure compatibility with standard 2.54mm pitch mating connectors. Check RoHS compliance status if required by project specifications.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for through-hole applications. The 2.54mm pitch ensures broad compatibility with standard ribbon cables and mating sockets. Consider the operating temperature range and insulation material properties for environmental suitability. Verify mechanical retention needs against the push-pull or press-fit installation method specified in the technical drawing.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of PCB connectors manufactured by Fischer Elektronik GmbH & Co. KG. The series offers various configurations in terms of position count and row arrangement. The SL 11 164 4 G specifically denotes a 4-position variant within this standardized line of male headers designed for robust electronic interconnects.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54mm pitch, single-row, 4-position through-hole format. Compatible alternatives include other Fischer Elektronik SL 11 variants with different position counts or generic industry-standard headers meeting identical dimensional and plating specifications. Verify cross-compatibility with existing mating connectors before substitution.
