SL 11 164 4 Z

Headers, Male Pins Overview

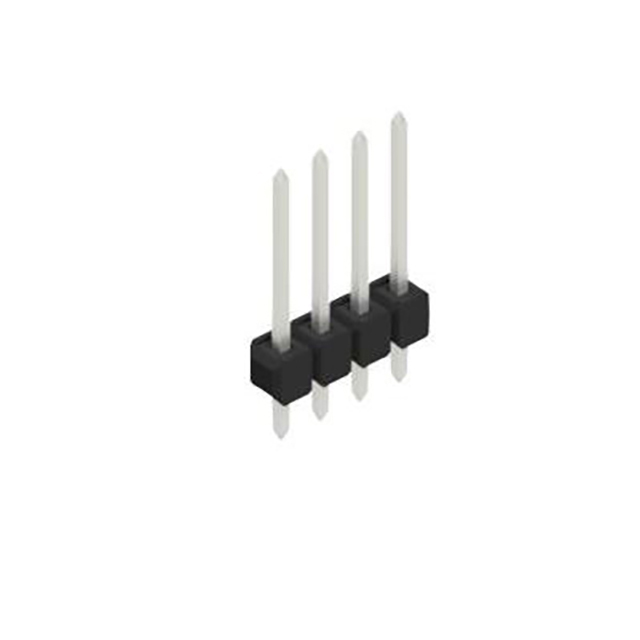

The SL 11 164 4 Z is a single-row PCB header manufactured by Fischer Elektronik. It features 4 positions with a 0.100 inch (2.54 mm) pitch. The connector utilizes male pin contacts made of copper-tin alloy, finished with tin plating. Designed for through-hole mounting, it has an insulation height of 0.110 inches and a mating contact length of 0.213 inches. The component is constructed from polyamide (PA46) insulation material and is currently in active production status.

Headers, Male Pins Feature Summary

• Single-row male pin header configuration
• Through-hole mounting technology
• Tin-plated copper-tin alloy contacts

Headers, Male Pins Applications

• General electronic interconnects
• PCB-to-PCB connections
• Signal transmission modules

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm contact count and series alignment. Ensure compatibility with mating socket specifications regarding pitch and housing dimensions. Check for any specific handling requirements related to the through-hole assembly process and thermal profiles during soldering.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for through-hole applications. The 2.54 mm pitch ensures broad compatibility with standard ribbon cables and mating connectors. Consider the mechanical stability provided by the PA46 insulation and the corrosion resistance offered by the tin plating for general-purpose environments.

Headers, Male Pins Part Context

This part belongs to the SL 11 164 series of precision-engineered electronic components. The series is characterized by its one-row design and standardized 2.54 mm spacing. Fischer Elektronik produces these headers for reliable signal and power distribution in various industrial and consumer electronics assemblies.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other single-row male headers with 4 positions and 2.54 mm pitch. Verify that alternative parts match the physical dimensions, specifically the insulation height and overall length, to ensure proper fit within the designated PCB footprint and enclosure constraints.
