SL 11 164 5 Z

Headers, Male Pins Overview

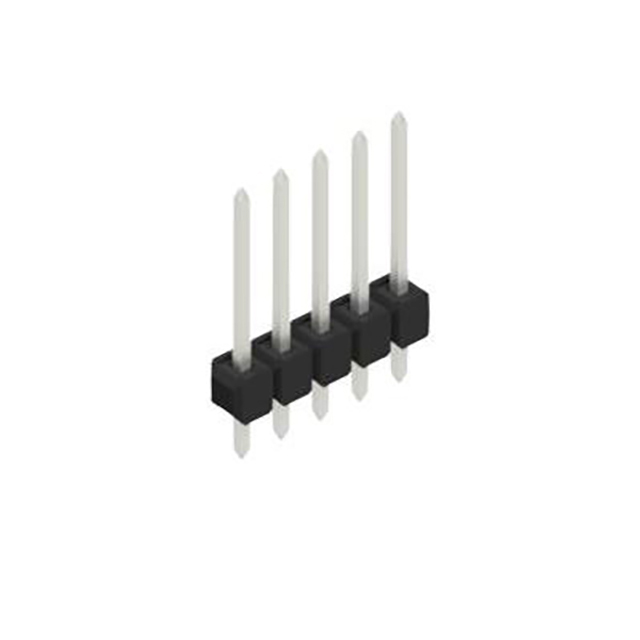

The SL 11 164 5 Z is a male header connector from the Fischer Elektronik SL 11 series. It features a single row with five contacts and a 2.54 mm pitch. The contact cross-section measures 0.635 mm. Designed for through-hole mounting, it utilizes tin-plated copper alloy contacts. The insulating body is constructed from PA 4.6 material. This component serves as a standard interconnect solution for printed circuit boards.

Headers, Male Pins Feature Summary

• Single row configuration with five positions
• Through-hole mounting technology
• Tin-plated copper alloy contacts
• PA 4.6 insulating body

Headers, Male Pins Applications

• Printed circuit board interconnections
• General electronic assembly
• Signal routing in low-power circuits

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to ensure accuracy. Confirm that the required contact count and pitch match the design specifications. Check for any specific surface finish requirements or RoHS compliance status directly from the manufacturer's current datasheets before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a single-row, five-position male header with a 2.54 mm pitch is required. Ensure the PCB layout accommodates the through-hole footprint and the specified contact dimensions. Consider the PA 4.6 insulation material properties for thermal and mechanical stability in the intended application environment.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male headers produced by Fischer Elektronik GmbH & Co. KG. The series offers various contact counts ranging from one to thirty-six positions. All units in this series share a consistent 2.54 mm grid spacing and 0.635 mm contact cross-section, providing standardized connectivity options for diverse electronic designs.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik catalogs for direct substitutes within the SL 11 series. Verify compatibility with existing mating connectors and PCB footprints before considering alternative manufacturers. No public substitute part numbers are confirmed for this specific model.
