SL 11 164 6 G

Headers, Male Pins Overview

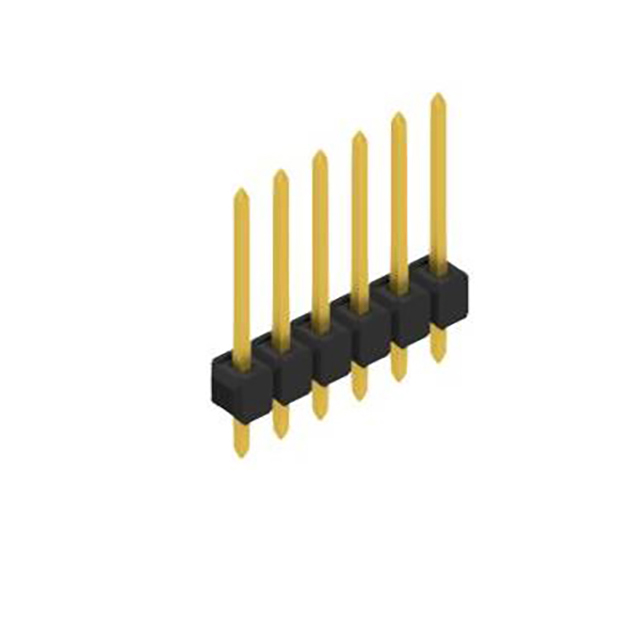

The SL 11 164 6 G is a male pin header connector from Fischer Elektronik, designed for surface mount or through-hole PCB integration. It features a 2.54 mm (0.100 inch) pitch with 6 contacts arranged in a single row. The connector utilizes bronze contact material with tin plating to ensure reliable electrical performance. It supports a rated voltage of 250 V and a current capacity of 3 A. The operating temperature range spans from -40°C to +163°C, accommodating standard reflow soldering profiles up to 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for compact board-to-board connections
• Tin-plated bronze contacts providing corrosion resistance and conductivity
• Robust thermal stability suitable for high-temperature manufacturing processes

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Industrial control panel wiring harnesses
• Consumer electronics internal component linking

Headers, Male Pins Procurement Notes

Verify the specific terminal style (THT vs SMD) against the mechanical drawing, as series variations exist. Confirm that the tin-plated variant matches the application's environmental requirements. Ensure the 3 A current rating suffices for the target load. Cross-reference the 250 V insulation rating with system safety standards. Validate physical dimensions against the PCB footprint design.

Headers, Male Pins Selection Notes

Select this model when a low-profile, single-row header is required for 6-pin interfaces. The 2.54 mm pitch ensures compatibility with standard ribbon cables and jumper wires. Consider the tin plating for cost-effective solutions where extreme corrosion resistance is not critical. The wide temperature range allows use in demanding industrial environments without derating concerns.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of PCB connectors manufactured by Fischer Elektronik. The series offers various pole counts and configurations, including 4-position and 30-position variants. The SL 11 164 6 G specifically addresses applications needing a small, reliable connection point with standard spacing.

Headers, Male Pins Replacement Considerations

Direct substitutes within the same series include the SL 11 164 4 G for 4-position needs. For higher density, the SL 11 164 30 G provides more contacts. Verify that alternative manufacturers offer identical 2.54 mm pitch and 3 A current ratings before substitution.
