SL 11 164 7 G

$0.50

Description：ONE ROW, 0.635 MM
Series：SL 11 164
Mfr：Fischer Elektronik
Package：Bulk

SKU:61343cb70fe0 Category: Headers, Male Pins Brand: Fischer Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SL 11 164 7 G is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Fischer Elektronik. Its product description is ONE ROW, 0.635 MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for SL 11 164 7 G

Description：ONE ROW, 0.635 MM
Series：SL 11 164
Mfr：Fischer Elektronik
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：7
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.417" (10.59mm)
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：0.646" (16.40mm)
Insulation Height：0.110" (2.80mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：7.87µin (0.200µm)
Contact Finish - Post：Gold
Contact Material：Copper Tin
Insulation Material：Polyamide (PA46), Nylon 4/6, Glass Filled
Features：-
Operating Temperature：-40°C ~ 163°C
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for SL 11 164 7 G

SL 11 164 7 G

Headers, Male Pins Overview

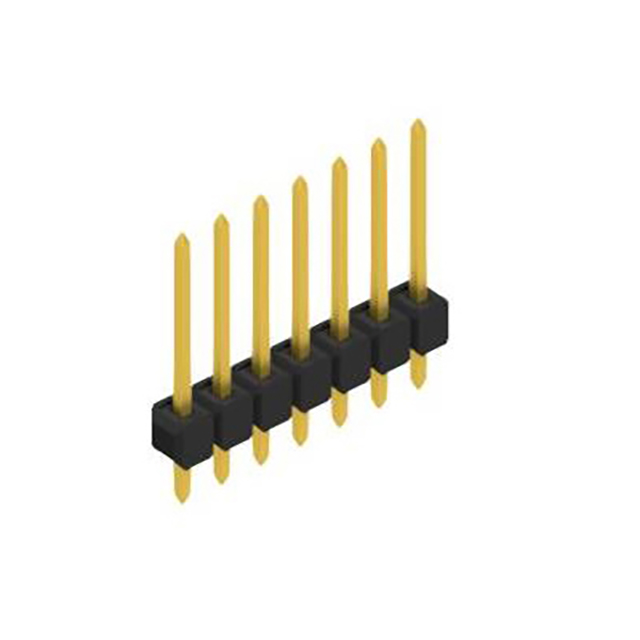

The SL 11 164 7 G is a male header connector from Fischer Elektronik, designed for through-hole PCB mounting. It features a single row with seven positions and a contact pitch of 0.100 inches (2.54 mm). The contacts are gold-plated to ensure reliable signal transmission and corrosion resistance. The connector utilizes a polyamide insulating body, providing mechanical stability and electrical insulation. This component is engineered for compact electronic assemblies requiring secure board-to-board or cable-to-board interconnections.

Headers, Male Pins Feature Summary

Single-row male pin configuration for space-efficient circuit board integration
Gold-plated contact surfaces to enhance conductivity and prevent oxidation
Through-hole termination method ensuring robust mechanical fixation on printed circuit boards

Headers, Male Pins Applications

General-purpose electronic device interconnects
Compact consumer electronics assembly
Industrial control panel wiring

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' corresponds to the required gold plating finish as per the manufacturer's datasheet. Confirm that the single-row, seven-position configuration matches the design requirements. Ensure compatibility with standard 2.54 mm pitch mating connectors. Check for any RoHS compliance documentation if environmental regulations apply to the end product.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row male header is required for through-hole applications. The gold plating makes it suitable for environments where corrosion resistance is critical. Consider the physical dimensions and insertion depth to ensure adequate clearance within the enclosure. Verify that the current rating and voltage specifications meet the circuit demands.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of PCB connectors by Fischer Elektronik. The series offers various configurations in terms of pole count and row arrangement. These connectors are widely used in the electronics industry for their reliability and standardized dimensions. The SL 11 series is known for its precision engineering and suitability for automated assembly processes.
