SL 11 164 7 S

Headers, Male Pins Overview

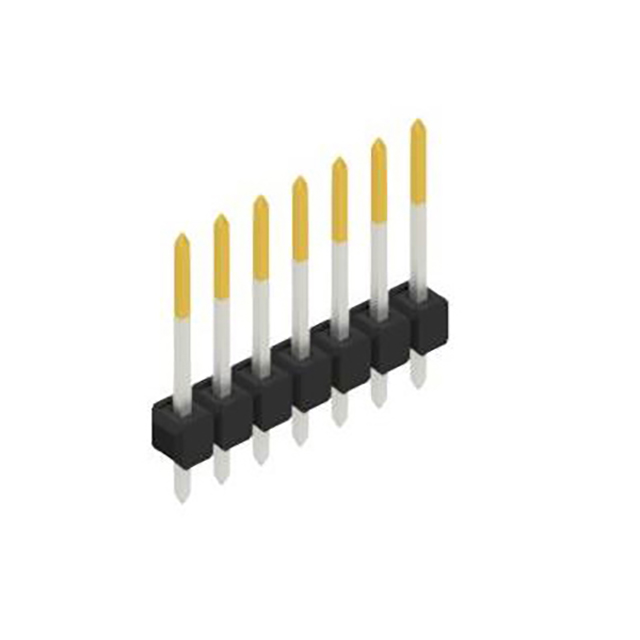

The Fischer Elektronik SL 11 164 7 S is a single-row male pin header connector designed for through-hole mounting. It features 7 positions with a 2.54 mm (0.100 inch) pitch. The contacts are made of copper alloy and feature selective gold plating to ensure reliable signal transmission. The insulating material is glass-filled polyamide (PA46), providing structural integrity and thermal stability. This component supports reflow soldering processes, withstanding peak temperatures of 260°C for 10 seconds, making it suitable for automated assembly lines.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for compact board-to-board or cable connections
• Selective gold contact plating on copper alloy pins for enhanced conductivity and corrosion resistance
• Glass-filled polyamide insulation housing ensuring high thermal stability and UL 94 V-0 flammability rating
• Through-hole termination method compatible with standard PCB fabrication techniques

Headers, Male Pins Applications

• Industrial control systems requiring robust interconnects
• Test and measurement equipment interfaces
• Consumer electronics assemblies needing reliable signal paths
• Automotive electronic modules

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' indicates selective gold plating rather than tin or other finishes when sourcing replacements. Confirm that the 7-position count matches the design requirement, as this series offers various pole counts. Ensure the through-hole footprint aligns with the PCB layout guidelines provided in the official datasheet to prevent mechanical stress during soldering.

Headers, Male Pins Selection Notes

Choose this component when a single-row, 2.54 mm pitch header is required with high-reliability contacts. The selective gold finish is critical for applications involving frequent mating cycles or harsh environments where oxidation resistance is paramount. Consider the operating temperature range of -40°C to +163°C for environmental suitability. Verify that the insertion depth and overall height fit within the enclosure constraints.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered male pin headers from Fischer Elektronik. The series is characterized by its modular design, allowing for various pin counts and row configurations. The SL 11 series is widely used in industries demanding high reliability and precise connectivity, such as medical devices and industrial automation, due to its consistent performance and durable materials.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 7-pin count, 2.54 mm pitch, and single-row format. Ensure the replacement also offers selective gold plating if corrosion resistance is required. Verify that the insulating material and flammability rating (UL 94 V-0) meet safety standards. Check compatibility with reflow soldering profiles to avoid thermal damage during assembly.
