SL 11 164 7 Z

Headers, Male Pins Overview

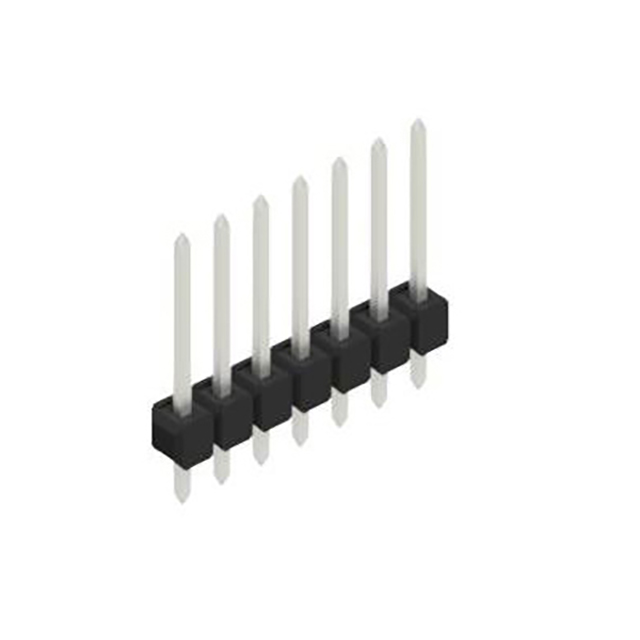

The SL 11 164 7 Z is a single-row male header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains seven contacts. The connector utilizes square-shaped pins with a tin-plated contact surface, providing a mating contact length of 8.10 mm and a column contact length of 3.00 mm. Constructed from copper-tin alloy contacts and PA46 insulating material, this through-hole component has an insulation height of 2.80 mm and a total contact length of 13.90 mm. It is designed for reliable electrical interconnection in electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row male pin header configuration
• Tin-plated square contact design
• Through-hole mounting technology

Headers, Male Pins Applications

• General-purpose PCB interconnections
• Electronic assembly prototyping
• Signal routing in control panels

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm contact count and plating specifications. Ensure compatibility with mating socket connectors regarding pitch and housing dimensions. Check for any specific handling requirements during soldering processes to maintain contact integrity.

Headers, Male Pins Selection Notes

Select this component when a seven-position single-row male header is required. Consider the 2.54 mm pitch for standard board layouts. Evaluate the through-hole mounting style against available surface area and mechanical stress requirements. Confirm that the tin plating meets environmental and conductivity needs for the intended application.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of male headers from Fischer Elektronik. The series offers various contact counts ranging from one to thirty-six positions while maintaining a consistent 2.54 mm grid spacing. These connectors are engineered for robust performance in industrial and commercial electronics, providing stable connections across diverse operating conditions.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik SL 11 series headers with matching seven-contact configurations. Verify that alternative parts maintain the same 2.54 mm pitch, through-hole mounting style, and tin-plated contact finish to ensure interchangeability without redesigning the printed circuit board layout.
