SL 11 164 8 S

Headers, Male Pins Overview

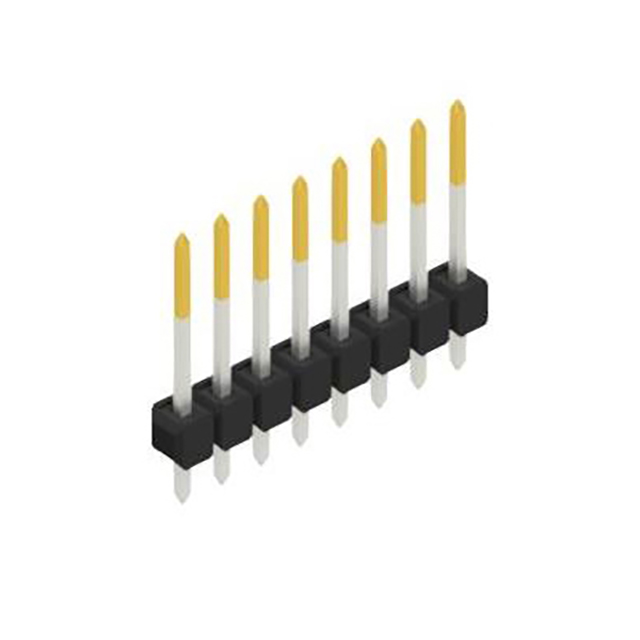

The SL 11 164 8 S is a male pin header connector manufactured by Fischer Elektronik. It features a single row with eight positions and a 2.54 mm (0.100 inch) pitch. Designed for through-hole mounting, the component utilizes tin-plated contacts to ensure reliable electrical connections. The housing is constructed from polyamide material, providing structural integrity and insulation. This specific part number denotes a straight configuration suitable for board-to-board or wire-to-board applications requiring compact connectivity solutions.

Headers, Male Pins Feature Summary

• Single-row male pin design for compact circuit integration
• Through-hole mounting technology for secure PCB attachment
• Tin-plated contact surfaces for corrosion resistance

Headers, Male Pins Applications

• Board-to-board interconnections
• Wire-to-board signal routing
• General electronic module assembly

Headers, Male Pins Procurement Notes

Verify the suffix 'S' corresponds to the standard tin-plated finish as documented in official Fischer Elektronik datasheets. Confirm that the required contact plating matches application needs, as other variants may utilize gold or nickel finishes. Ensure the through-hole footprint aligns with the target printed circuit board layout specifications before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, eight-position male header is required for through-hole implementation. The 2.54 mm pitch is standard for general-purpose electronics. Consider alternative suffixes if specific plating materials like gold are necessary for high-cycle mating environments or enhanced conductivity requirements beyond standard tin performance.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of precision-engineered electronic connectors. The series offers various pin counts and configurations tailored for diverse connectivity needs. Fischer Elektronik designs these headers to meet rigorous standards for reliability and mechanical stability in electronic assemblies.

Headers, Male Pins Replacement Considerations

Cross-reference with SL 11 164 8 Z or SL 11 164 8 G if different contact platings such as nickel-tin or selective gold are required. Verify that physical dimensions and pitch remain identical to ensure compatibility with existing tooling and PCB footprints.
