SL 11 164 8 Z

Headers, Male Pins Overview

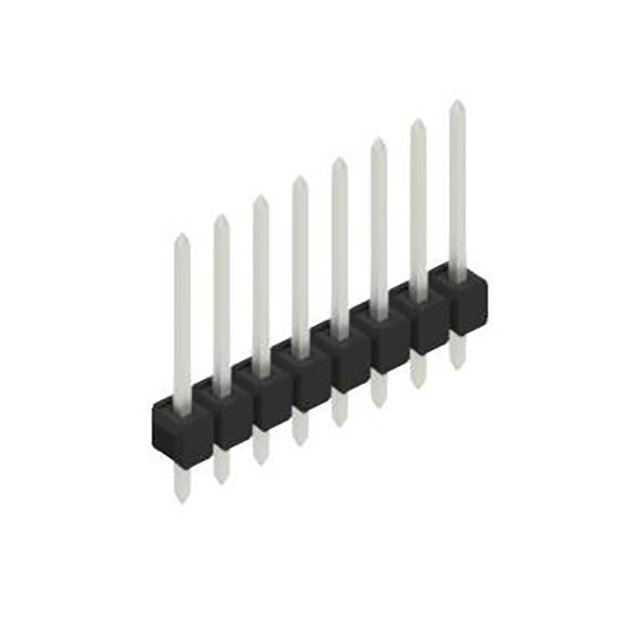

The SL 11 164 8 Z is a male pin header connector from the Fischer Elektronik SL series. It features a single row with eight positions and a 0.100-inch (2.54 mm) pitch. The connector utilizes through-hole termination for secure PCB mounting. Contacts are made of tin-plated copper alloy, providing reliable conductivity. The insulating body is constructed from polyamide (PA46), ensuring thermal stability. This component is designed for general electronic interconnection applications requiring robust mechanical and electrical performance.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standardized spacing
• Through-hole terminal style for secure board attachment
• Tin-plated contacts for corrosion resistance
• Polyamide insulation for thermal durability

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Prototype development and testing setups
• Industrial control panel wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm contact count and plating specifications. Ensure compatibility with mating connectors regarding pitch and height. Check for any RoHS compliance requirements relevant to your manufacturing process. Confirm that the through-hole footprint matches your PCB design constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 2.54 mm pitch is required. Consider the current rating and voltage limits specified in the datasheet for your application. Evaluate the operating temperature range to ensure the polyamide material remains stable. Compare physical dimensions against available space on the target printed circuit board to avoid clearance issues during assembly.

Headers, Male Pins Part Context

This part belongs to the SL 11 164 series of precision-engineered headers. The series offers various contact counts while maintaining consistent 0.635 mm or 2.54 mm pitch options depending on the specific variant. Fischer Elektronik designs these components for reliability in demanding environments. The SL 11 164 8 Z represents a specific configuration within this broader family of interconnect solutions.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided data. Verify cross-compatibility with other manufacturers' headers based on pitch, row count, and terminal style. Ensure mating connector interfaces match the male pin geometry. Consult official distributor databases for equivalent parts if original supply is unavailable.
