SL 11 164 9 G

Headers, Male Pins Overview

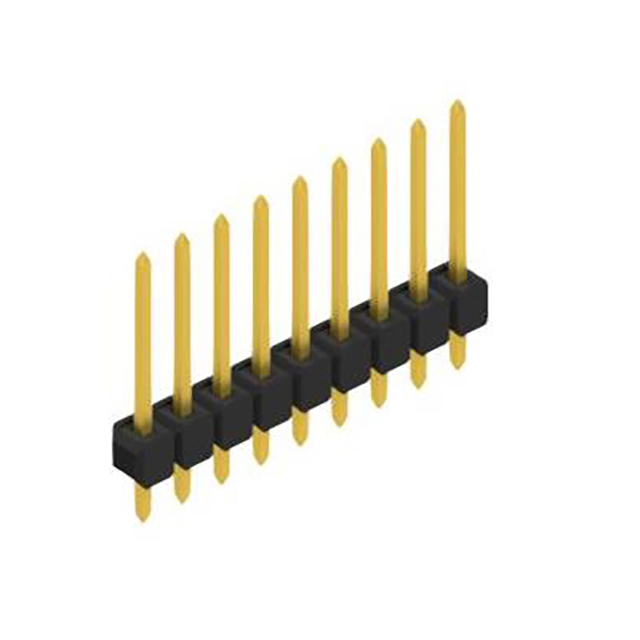

The SL 11 164 9 G is a male pin header manufactured by Fischer Elektronik. It features a single row with nine positions and a standard pitch of 2.54 mm (0.100 inches). The connector utilizes through-hole mounting for secure PCB attachment. Contact materials consist of bronze, with tin plating to ensure reliable electrical performance. The design supports compact electronic assemblies requiring robust interconnectivity.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standardized board-to-board or wire-to-board connections
• Through-hole mounting method ensures mechanical stability on printed circuit boards
• Tin-plated bronze contacts provide corrosion resistance and consistent conductivity

Headers, Male Pins Applications

• General-purpose electronic equipment interconnects
• Industrial control system signal routing
• Consumer electronics assembly modules

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm contact plating thickness and material composition. Ensure the selected variant matches the required insertion depth and insulation height specifications for the target PCB layout. Cross-reference the part number with official Fischer Elektronik documentation to confirm current availability and compliance status before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 2.54 mm pitch is required for through-hole applications. Consider the physical dimensions and contact length relative to the mating connector interface. Evaluate the thermal stability and mechanical retention strength provided by the through-hole design for environments subject to vibration or thermal cycling.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of precision-engineered pin headers from Fischer Elektronik. The series offers various pole counts while maintaining a consistent 2.54 mm grid spacing. These connectors are designed for high-density applications where reliable signal transmission and mechanical durability are critical requirements for electronic hardware integration.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, single-row configuration, and through-hole mounting style. Verify that alternative manufacturers offer compatible contact materials and plating specifications to ensure electrical continuity and mechanical fit within existing assembly constraints.
