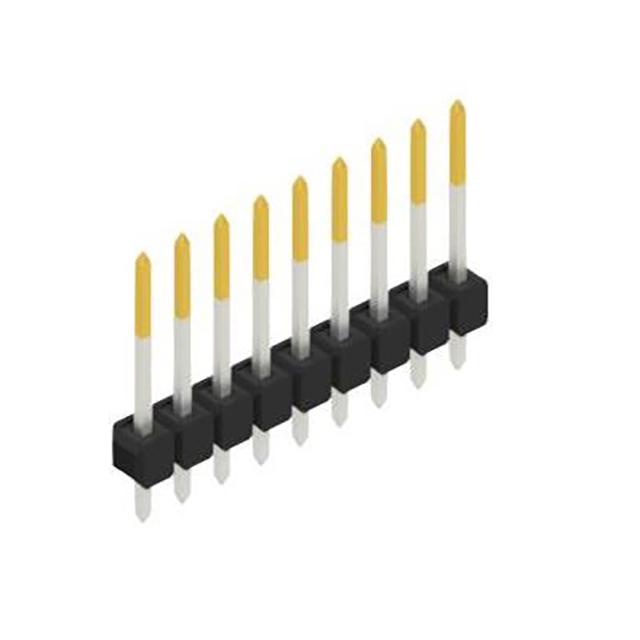

SL 11 164 9 S

$0.41

Description：ONE ROW, 0.635 MM
Series：SL 11 164
Mfr：Fischer Elektronik
Package：Bulk

SKU:1e01d88807e2 Category: Headers, Male Pins Brand: Fischer Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SL 11 164 9 S is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Fischer Elektronik. Its product description is ONE ROW, 0.635 MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for SL 11 164 9 S

Description：ONE ROW, 0.635 MM
Series：SL 11 164
Mfr：Fischer Elektronik
Package：Bulk
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：9
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board or Cable
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.417" (10.59mm)
Contact Length - Post：0.118" (3.00mm)
Overall Contact Length：0.646" (16.40mm)
Insulation Height：0.110" (2.80mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：157.5µin (4.00µm)
Contact Finish - Post：Tin
Contact Material：Copper Tin
Insulation Material：Polyamide (PA46), Nylon 4/6, Glass Filled
Features：-
Operating Temperature：-40°C ~ 163°C
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：3A
Voltage Rating：250VAC

Headers, Male Pins datasheet and documents for SL 11 164 9 S

SL 11 164 9 S

Headers, Male Pins Overview

The SL 11 164 9 S is a single-row, through-hole pin header connector manufactured by Fischer Elektronik. It features 9 positions with a 2.54 mm (0.100 inch) mating pitch. The contacts are male pins with a square shape and tin plating. Constructed from copper-tin alloy, the connector utilizes polyamide (PA46) insulation. Key dimensions include an overall contact length of 13.90 mm, a mating contact length of 8.10 mm, and a column contact length of 3.00 mm. The insulator height is 2.80 mm.
